Overview

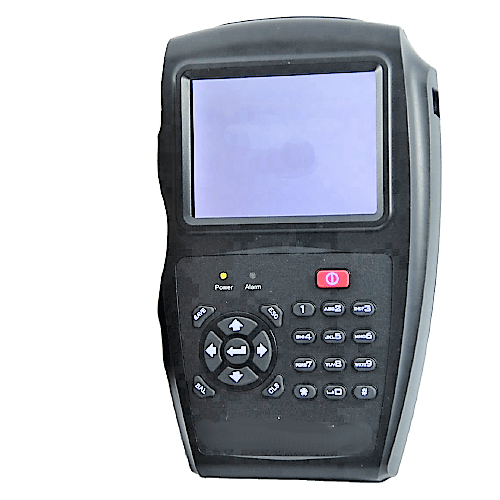

Emissions and Stack High Precision Current Flaw Detector Testing Equipment machine has been proved by research that, operate smart keyboards with thumb is much easier than with other fingers because it has less joints. HEF-301eddy current testing machine takes this advantage to realize one-finger operation. Moreover, with the latest digital electronic technology and microcomputer technology, this instrument can offer not only extremely convenient operation, but also reliable and stable high performance.
Technical Specifications
| Frequency Range | 64 Hz to 5 MHz (adjustable) |
| Gain Range | 0 dB to 90 dB, adjustable in step of 0.5 dB |
| Batteries | Lithium Polymer Batteries |
| Phase Rotation | 0 to 360, adjustable in step of 1 |
| Working Type | 5.5 h continuous |
| Digital Filter | Optional in absolute probe, differential probe |
| Communication | USB port (connect with USB and other removable storage devices) or network port (connect with PC) |
| Boundary Dimension | 7.20 in × 4.72 in × 1.73 in (183 mm x 120 mm x 44 mm) |
| Weight | 1.32 lbs (600 gm) |
