Overview

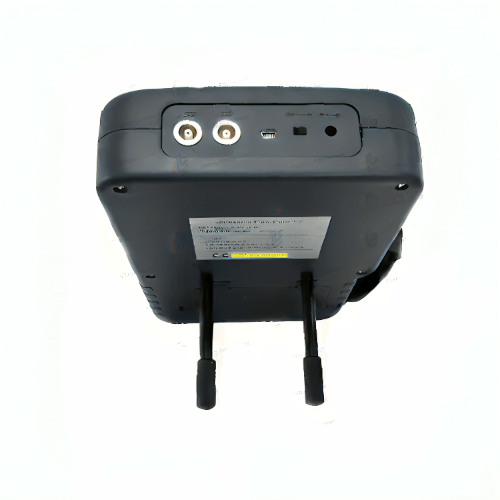

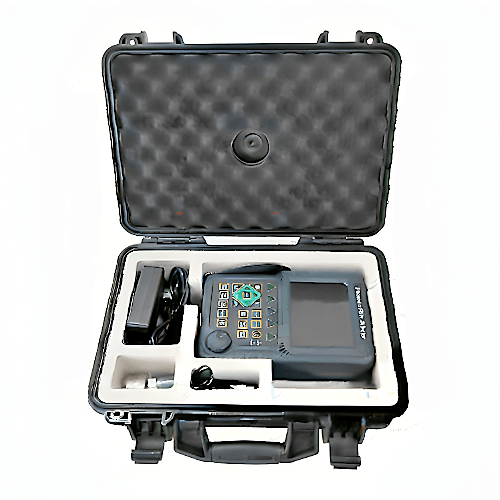

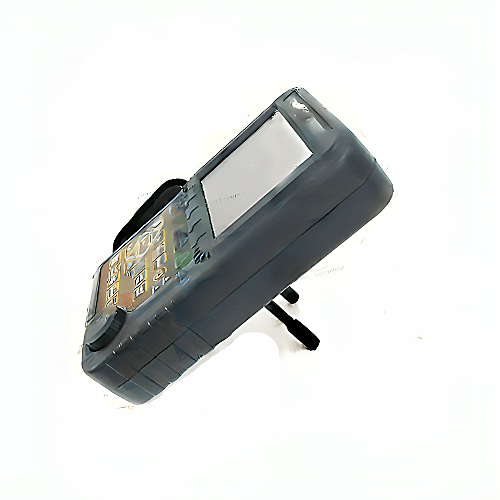

Emissions and Stack High Precision Digital Portable Ultrasonic Flaw Detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowhole, etc.) inside the work piece. The product is unique in design, easy to operate and durable. It adopts all-Chinese true colour liquid crystal display. Different colour schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for defect detection, quality control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.
Technical Specifications
| Examination Range | 0 in to 393.70 in (0 mm to 9999 mm) |
| Working Frequency | 0.2 MHz to 20 MHz |
| Sound Speed Range | 1000 m/s to 15000 m/s |
| Dynamic Range | ≥36 dB |
| Vertical Linearity Error | ≤2.5% |
| Horizontal Linearity Error | ≤0.1% |
| Discrimination | >40 dB (5P14) |
| Sensitivity Margin | >65 dB (deep 7.87 in (200 mm) 2 flat bottom hole) |
| Digital Suppression | 0% to 80%, does not affect linearity and gain |
| Electrical Noise Level | ≤8% |
| Probe Type | Straight probe, oblique probe, dual crystal probe, penetration probe |
| Gate | Incoming gate, loss gate; single gate reading, double gate reading |
| Pulse Amplitude | Low (300 V), medium (500 V), high (700 V) grading options |
| Pulse Width | Continuous adjustment in the range of (0.1 to 0.5) μs to match probes of different frequencies |
| Probe Damping | 100 Ω, 200 Ω, 400 Ω optional |
| Real-time Sampling of Hardware | High resolution 10-bit AD converter with sampling speed of 160 MHz and high waveform fidelity |
| Detection Method | Positive half wave, negative half wave, full wave, radio frequency detection |
| Filter Band | 0.2 MHz to 20 MHz, fully automatic matching according to probe frequency, no need to set manually |
| Data Storage | 100 sets of flaw detection parameter channels, 1000 flaw detection echo signals and parameters |
| Communication Interface | USB 2.0 high speed communication transmission interface |
| Power Supply | DC (DC) 9 V; lithium battery works continuously for more than 8 hours |
| Ambient Temperature And Humidity | Temperature: 50 °F to 122 °F (10 °C to 50 °C) Humidity: (20% to 95%) RH |
| Dimensions | 10.35 in × 6.69 in × 2.40 in (263 mm x 170 mm x 61 mm) |
