Overview

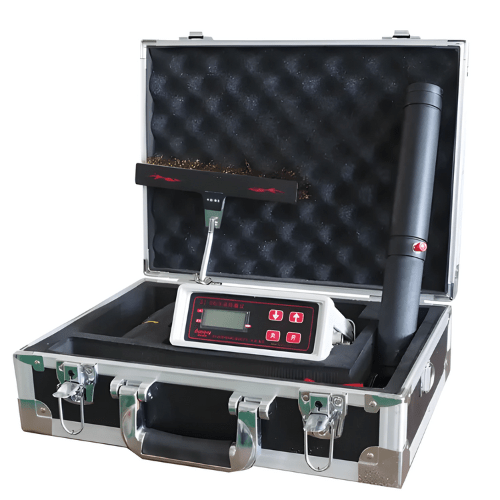

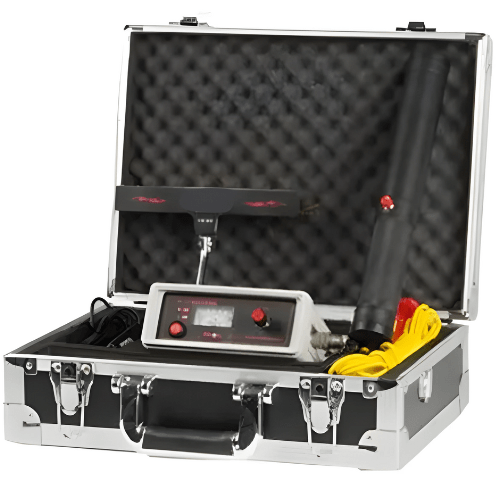

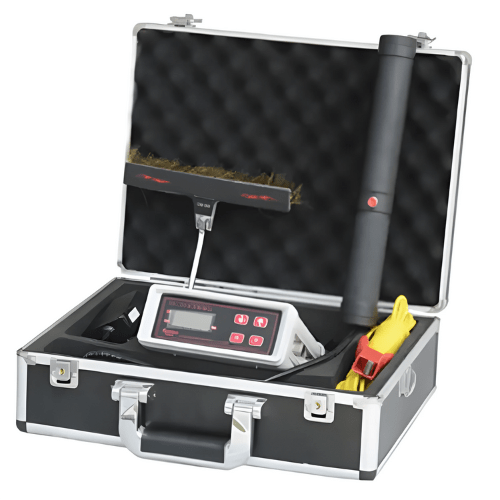

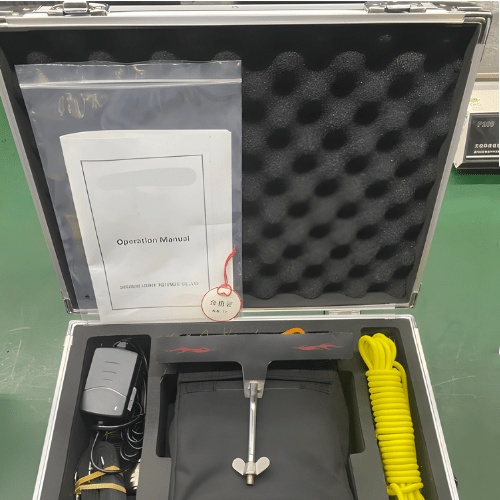

Emissions and Stack High Precision Electric spark flaw detector is used to detect the construction quality and aging corrosion points of anticorrosive coatings on oil and gas pipelines, cables, enamels, metal storage tanks, lining and ship hull. When the anticorrosion coating has the quality problem such as the micro hole, air gap, the instrument will emit the bright spark, at the same time produces the sound alarm. The instrument has novel design and simple operation, and is widely used in petroleum, chemical, rubber, enamel, power plant and other industries.
Technical Specifications
| Measurement Range | Type A: 0.00 in to 0.13 in (0.03 mm to 3.5 mm) B: 0.13 in to 0.39 in (3.5 mm to 10 mm) |
| Output High Voltage | Type A: 0.5 kv to 15 kv B: 15 kv to 36 kv |
| Display | Pointer type |
| High Voltage Control System | Regulation of ordinary potentiometer |
| Dc Power Supply | 12 v |
| Power Consumption | <5 w |
| Alarm Delay | 1 to 2 seconds |
| High Voltage Gun | Microelectronic high voltage generator |
| Packing | Metal case |
| Host Size | 6.49 in × 6.10 in × 2.67 in (165 mm × 155 mm × 68 mm) |
