| Measurement Frequency |
20 Hz to 5 MHz |
| Basic measurement accuracy |
0.05 % |
| Equivalent circuit |
Series, parallel |
| Mathematical functions |
Absolute value deviation, percentage deviation |
| Range way |
Automatic, hold, manual selection |
| Trigger mode |
Automatic, manual, external, bus |
| Measure (>= 1 KHz) |
Fast 200 times per second, medium 12 times per second, slow 3 times per second |
| Average time |
1 to 255 |
| Delay time |
0 sec to 6 sec, step by 1 ms |
| Calibrating |
Open or short circuit or load |

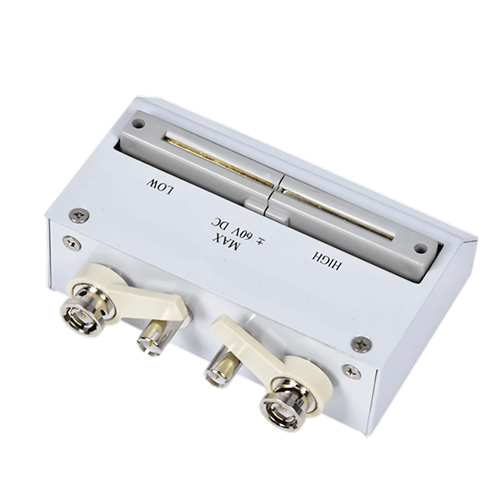

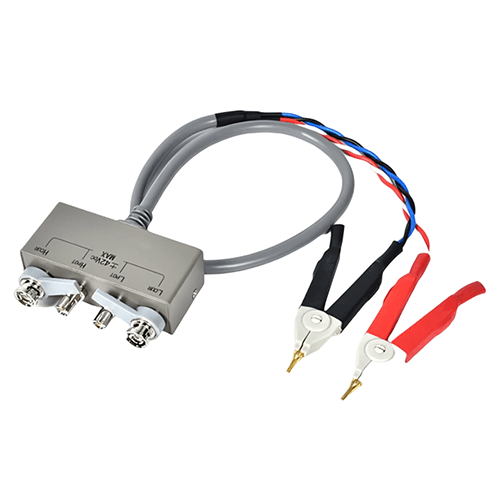

| Test configuration |
Four or five ends |
| Value list |
10-point list scanning function |
| Test signal |
Normal 5 mV to 2 V, 1 mV step, Constant level 10 mV to 1 V, 1 mV step |
| Bias source |
0 V, 1.5 V, 2 V, 10 V (100 mA) DC bias current of, 0 A to 1 A DC bias current |
| Display mode |
Direct reading, delta %, V or I |
| Display of |Z|, R, X |
0.01 mΩ to 99.9999 MΩ |
| Display of DCR |
0.001 mΩ to 99.9999 MΩ |
| Display of |Y|, G, B |
0.0000 1 µS to 99.9999 S |
| Display of C |
0.00001 µF to 9.9999 F |
| Display of L |
0.00001 µH to 99.9999 H |
| Display of DCR |
0.00001 to 9.9999 |
| Display of Q |
0.00001 to 9999.9 |
| Degree |
-179.999 degrees to 179.999 degrees |
| Radians |
-3.14159 to 3.14159 |
| Comparator function |
Ten files (nine file a qualified, unqualified), another subsidiary file AUX |
| Memory |
Internal storage, USB extended storage |
| Interface |
RS232C, HANDLER, USB and HOST standard, Headset interface, pedal interface |
| Dimensions |
13.4 in x 10.4 in x 3.9 in (340 mm x 265 mm x 100 mm) |
