| Memory |
2 GB DDR |
| Storage |
8 GB EMMC (Optional 8 GB, 16 GB, 32 GB EMMC) |
| Graphics |
CPU integrated graphics |
| Vocal |
Realtek ALC662, High-Definition Audio (HD), Line In, Line Out |
| The internet |
1 × Realtek RTL 8111E Gigabit Ethernet Controller |

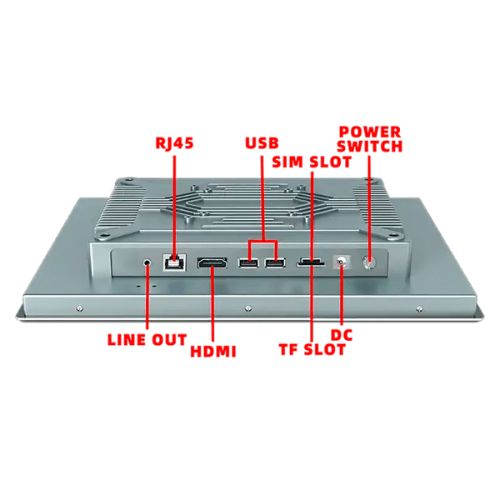

| Input and output interface |
2 x USB 2.0, 1 x Built-in USB Soft Dog, 1 x HD or Audio Line Out |
| Expansion slot |
MINI-PCIE x 1, onboard SIM card slot, support 3G/4G module, MINI-PCIE x 1, support WIFI |
| Operating system |
Support Android |
| Panel size |
7 in (17.7 cm) |
| Resolution |
1024 x 600 |
| Aspect ratio |
16:9 |
| Color support |
16.7 million colors |
| Brightness |
300 cd/m² |
| Response time |
5 ms |
| Contrast ratio |
1000:1 |
| Perspective |
85° or 85° or 85° or 85° (R or L or U or D) |
| Touch screen type |
capacitive touch screen |
| Touch interface |
USB (RS232 optional) |
| Touch response time |
2 ms |
| Surface hardness |
7 H |
| Career |
50 million times |
| External power supply |
AC 100 V to 240 V |
| Operating Voltage |
12 V to 5 A |
| Energy consumption |
≤ 35 W |

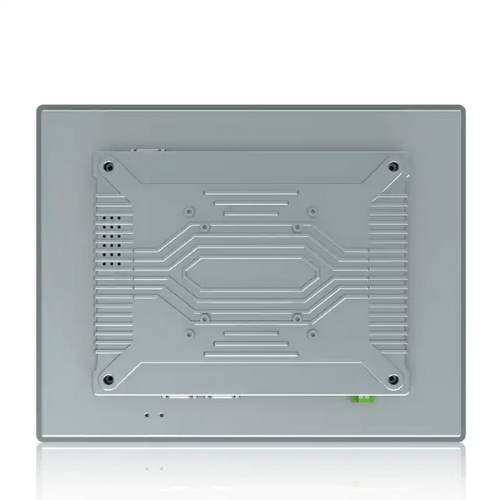

| VESA installation |
2.9 in x 2.9 in (75 mm x 75 mm) |
| Temperature range |
Operation 14 ℉ to 140 ℉ (-10 ℃ to 60 °C), Storage -22 ℉ to 158 ℉ (-30 °C to 70 °C) |
| Relative humidity |
10 % to 90 % at 30° C (86 ℉), non-condensing |
| Vibration |
5Hz to 500 Hz, 0.026 G² or Hz, 2.16 Grms, X, Y, Z, 1 hrs per axis |
| Product Size |
9.2 in x 7.4 in x 25.6 in (23.6 cm x 19 cm x 65.2 cm) |
| Package Size |
12.5 in x 11 in x 5.1 in (32 cm x 28 cm x 13 cm) |
| Net weight |
4.4 lb (2 kg) |
| Total weight |
11 lb (5 kg) |
