| Measure Parameters |
Refractive index(nD), Brix (%), Temperature (° C) |
| Measure Range |
0% to 15% ,0% to 50%, 90% |
| Min Resolution Ratio |
Brix: 0.1% (Range for 15%, 0% to 50%), Brix: 0.5% (Range for 90%) |
| Measurement Accuracy |
Brix: ±0.1%, Brix: ±0.3% (standard) |
| Operating Current |
≤ 200 mA |

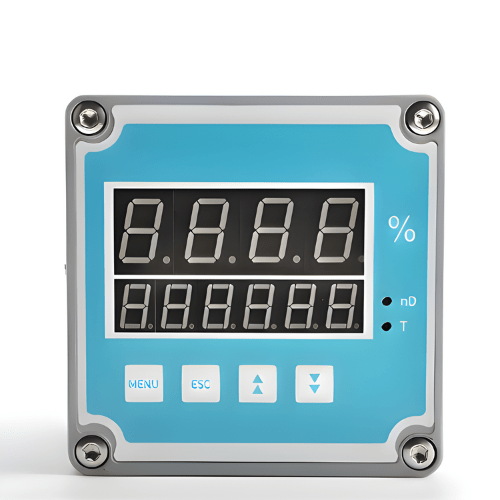

| Display Menu |
Refractive index(nD), Brix (%), Temperature (° C) |
| Output |
4 mA to 20 mA, 4 mA to 20 mA + RS485 optional |
| Power |
12 V DC to 24 V DC |
| Wetted Parts Material |
Prism: sapphire, Prism stage: SS304, SS316L |
| Optical Source |
LED (the wavelength approximately to D line) |
| Max Pressure |
1 MPa |
| Protection Grade |
IP67 |
| Process Connection |
3” tri-clamp, other size supply free adaptor |
| High and Low Limit Settings |
Buttons can be set |
| Record Output Cable |
2 M,3 M,5 M,10 M optional |
| Temperature Sensor |
Thin film platinum sensor |
| Measurement Temperature |
32 °F to 185°F (0 °C to 85 °C) |
| Environment Temperature |
32 °F to 104 °F (0 °C to 40 °C) |
| Instrument Size |
6.88 in × 4.72 in × 4.72 in (175 mm × 120 mm × 120 mm) |
| Weight |
6.61 lb (3 kg) |
