Overview
Emissions And Stack internal splitter are important 1550 nm relay transmission equipment for High performance super trunking links, High power distribution networks, Fiber Deep architectures and FTTx networks. It is designed to meet the most demanding noise performance requirements of CATV and FTTx applications.ItĀ provides optical isolation on the input and output of the gain block for stable, low noise operation. The input and output optical signal power levels are detected for monitoring and control. The input optical signal is amplified with active gain control for a constant output power level, or with active output power control for constant gainĀ also provides monitoring functions and associated alarms for all vital characteristics.
Features
- High adjustable output power maximum 35 dBm
- Fiber output supporting multi-ports Low NF
- Dual CPU dealing
- High stability and reliability
- Dual Hot-swappable 110 V AC or 48 V DC Power supplies
- Ethernet, RS 485 and RS 232 network interfaces
- Supporting Telnet and SNMP network management
- Intelligent temperature control system
- Consumption can be reduced 30 %
- RoHS Complied n Bellcore GR-1312-CORE Complied
Technical Specification
| Network | Wired LAN |
| Wavelength | 1530 nm to 1565 nm |
| Optical Input Power | -3.0 dB to +10d Bm |
| Saturated Output Power | 14 dB to 23 dBm |

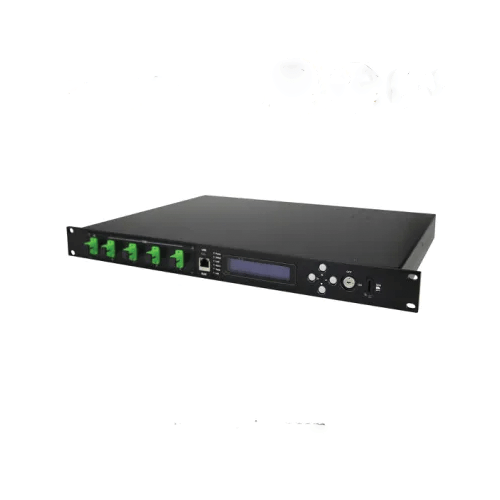

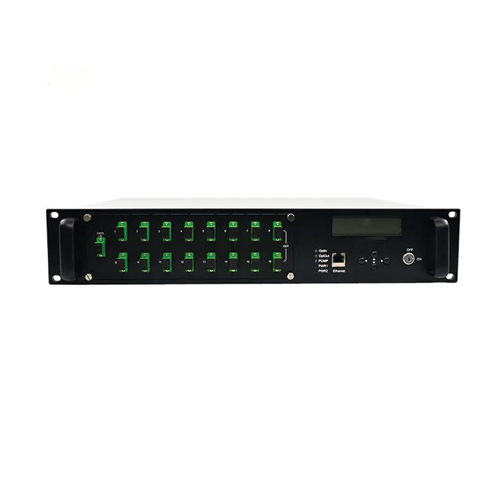

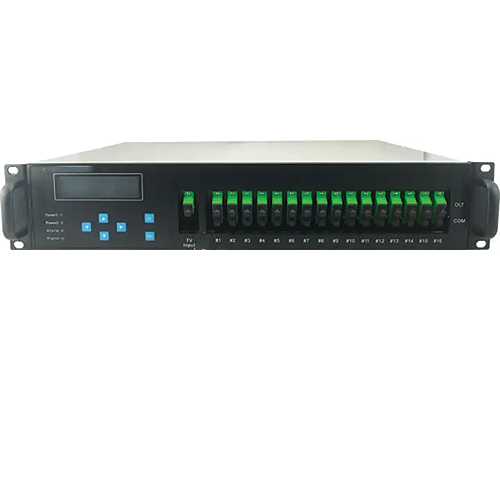

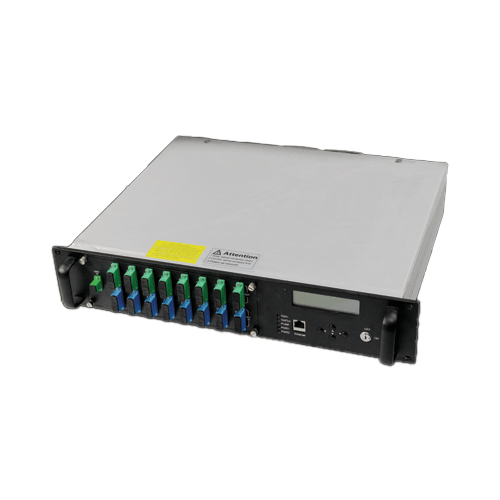

| Product name | 1550 nm FTTH Amplifier |
| Application | PON Networks |
| Power supply | AC and DC power supplies F |
| Dimensions | 19 in x 16.4 in x 3.46 in (483 mm x 416 mm x 88 mm) |
