Overview

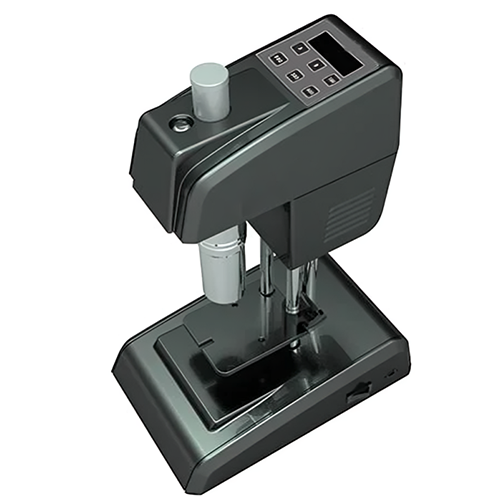

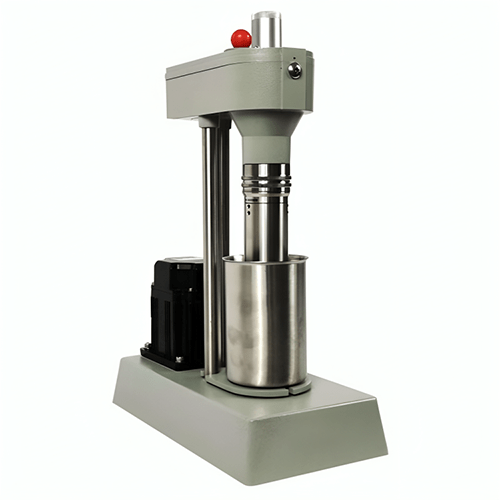

Emissions And Stack Laboratory Digital Rotational Viscometer for Drilling Fluid is a viscometer measurement device to read data directly. Standard electricity adapter supply power, apply to 100 V to 240 V wideband voltage, 50 Hz or 60 Hz power driver. When rotors rotate with a set speed, fluid will produce a viscosity resistance and then we can get fluid’s viscosity. Under torque produced by liquid to bob to precise springs, we can measure deflection, and then testing result and testing conditions can be compared to constant. This system can simulate real procedures in industry processing.
Technical Specifications
| Name | Digital Rotational Viscometer |
| Rated Frequency | AC 220 V ±5%, 50 Hz |
| Motor Speed | 800 r/min |
| Speed Range | H gear –3 r/min, 6 r/min, 100 r/min, 200 r/min, 300 r/min, 600 r/min L gear –1 r/min, 2 r/min, 10 r/min, 20 r/min, 30 r/min, 100 r/min |
| Measuring Accuracy | 1 mPa.s to 25 mPa.s ±1 mPa.s (Newtonian fluid) 25 mPa.S ±4% (Newtonian fluid) |
| Viscosity Measurement Range | Newtonian fluid1 mPa.s to 300 mPa.s (F1Measuring assembly) non-Newtonian fluid1 mPa.s to 150 mPa.s (F1Measuring assembly) |
| Shearing Stress | F1.0 |
| Measuring Assembly | 0 Pa.s to 153.3 Pa.s |
| Motor Power | 40 W |
| Size | 15.74 in × 7.08 in × 11.02 in (400 mm × 180 mm × 280 mm) |
| Weight | 15.21 lb (6.9kg) |
