Overview

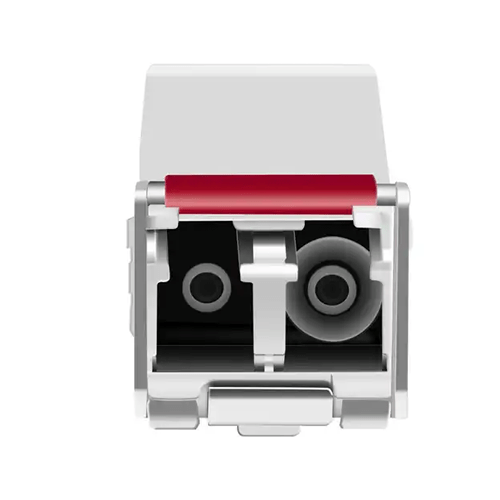

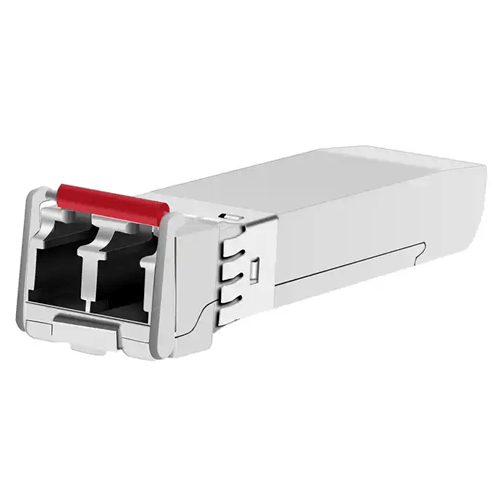

Emissions And Stack LC optical transceiver module is a MSA compliant 10 Gbps SFP+ Packaged Transceiver. It is designed, assembled, tested in the ISO certified manufacturing facilities and an ideal choice to fulfill various optical Networking applications.
Features
- Hot-Pluggable SFP+ Footprint
- Supports up to 10 Gbps Data Rates
- Single 3.3 V Power Supply and Industry Low Power dissipation
- Max link length Up to 62.14 mi (100 KM) on SMF Fiber
- Class 1 Laser Safety Compliant
- RoHS 6 compliant (lead free)
- Compliant with SFP+ MSA Specification
- Low power consumption
Technical Specifications
| Form Factor | SFP+ |
| Standard and protocol | 10 G BASE DWDM |
| Data Rate | 10 Gbps |
| Wavelength | DWDM CH 17 to CH 61 |
| Media | SMF |
| Reach | 62.14 mi (100 KM) |
| Interface | Duplex LC |
| Tx Source | EML |
| Rx Source | APD |
| Tx Power | 0 dBm to 5 dBm |
| Rx Power | ≦-25 dBm |
| Operating Case Temperature | 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) |
