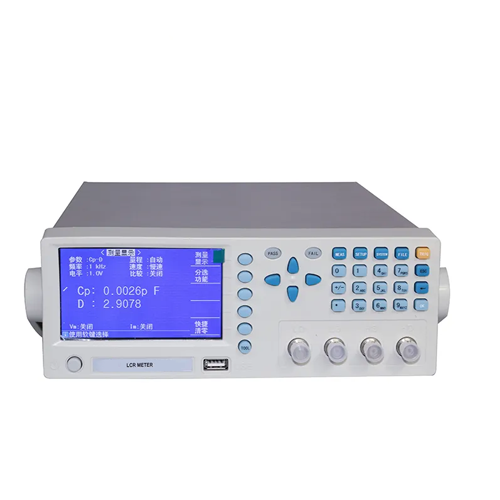

Name: Emissions And Stack LCD Display LCR ESR Meter Digital LCR Bridge Tester -
SKU: EMSLCRM-138

Features

The new 32-bit core processor, the data is completely comparable to the foreign first-class equipment
Built-in comparator, 5-speed sorting flexible qualified and bad alarm mode
Shutdown automatically saves test conditions, user-friendly operation
More than 100 sets of internal configuration files, U disk extended multiple sets of test files to save or call
Simplified Chinese, English optional
Upgrade and update of instrument software version via U disk
U disk copy screen function, test data save function, can support format FAT16, FAT32 file system
Standard RS232C, HANDLER, USB HOST; optional: USB DEVICE headphone jack, pedal interface, GPIB

Technical Specifications

Weight:	7.72 lb (3.5 kg)

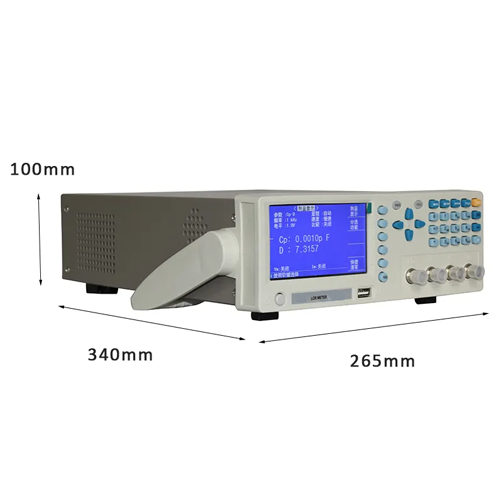

size:	10.43 in x 3.94 in x 13.38 in (265 mm x 100 mm x 340 mm)
Display:	4.3 Inch TFT LCD Display
Test signal level:	0.1 V, 0.3 V, 0.5 V, 1 V
equivalent circuit:	Series, parallel
Mathematical functions:	Percentage deviation
Range way:	Automatic, hold, manual selection
average time:	1 to 255
Comparator function:	5 grade sorting function
C	0.01 pF to 9.9999F
L	0.01 µH to 99999 H
D	0.0001 to 9.9999
Q	0.0001 to 9999.9
θ(Deg)	-179.99° to 179.99°
θ(Rad)	-3.1416 to 3.1416
Δ%	-999.99 % to 999.99 %
Comparator function	5-speed sorting function
Memory	More than 100 sets of internal instrument settings for storage/call, U disk expansion of more than 500 groups

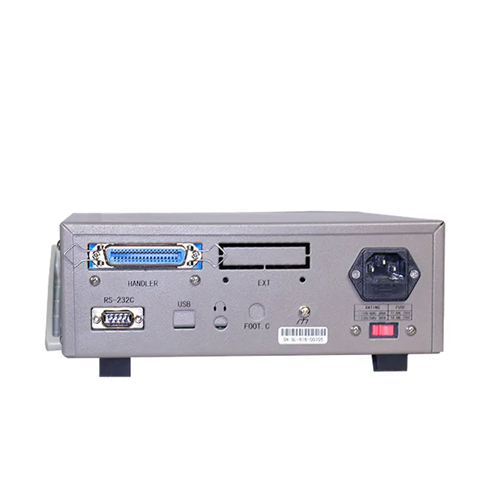

interface	Standard RS232C, HANDLER, USB HOST
Average number of times	1 to 255
Delay time	0 to 6 s, stepped in 1ms
Calibration function	Open / short circuit / fast clear
Display method	Direct reading, Δ%, V/I (measured voltage/current monitoring)

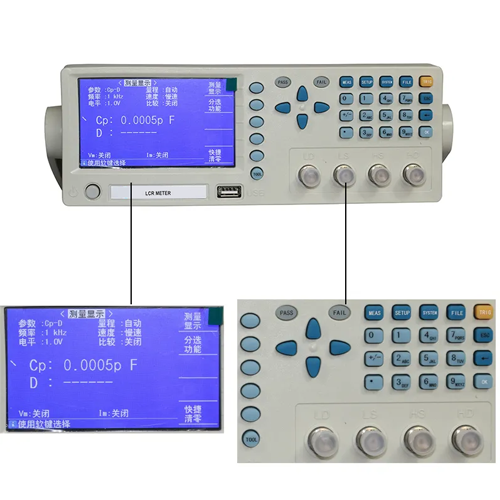

monitor	Main and auxiliary parameters 5-digit display, 4.3-inch true color LCD display
Output impedance	30 Ω, 100 Ω selectable
Basic measurement accuracy	0.10 %
Test signal level	0.1 V,0.3 V,0.5 V,1 V
Equivalent Circuit	Series Parallel
Mathematical function	Percent deviation
Range mode	Automatic, hold, manual selection
Trigger mode	Internal, manual, external, bus
Measuring speed (≥1 kHz)	Fast: 30 times/second fastest, medium speed: 10 times/second
