Overview

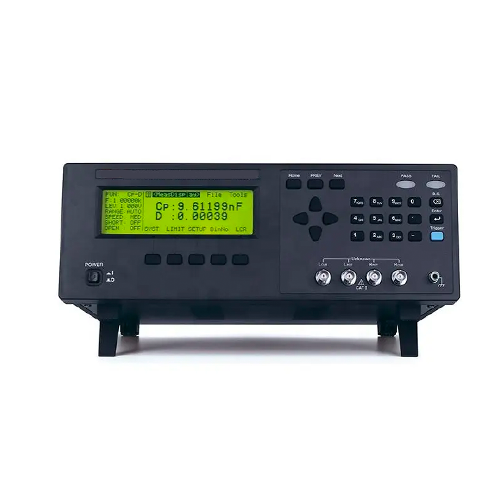

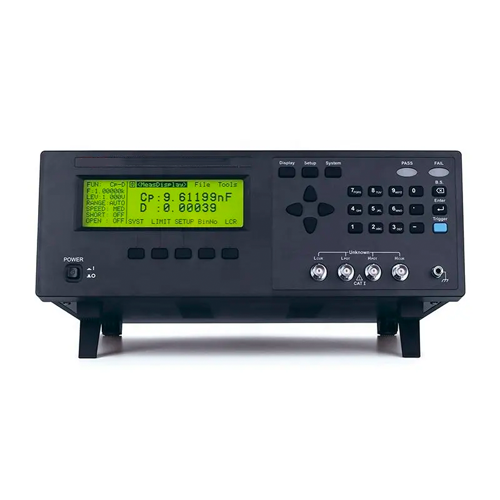

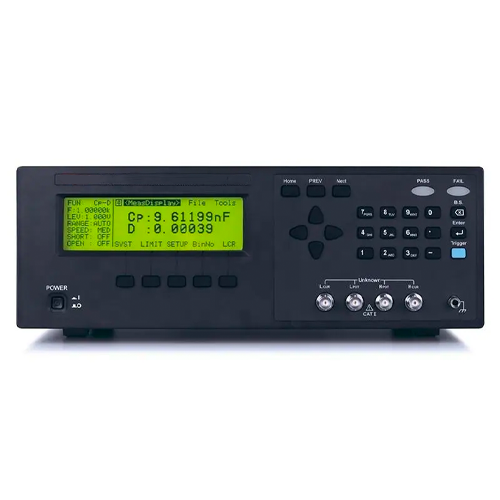

Emissions And Stack LCR Meter bridge tester improves the 0.05% accuracy of the original product to the 0.02% accuracy of the domestic ultra-high level, and at the same time inherits and further improves the stability and consistency of the original product, making it one of the most advanced products in the world. Combined with the low price, it will give our customers super value enjoyment. The new-generation instrument prompts the test speed to the fastest about 60 times per second, provides 9 levels of fine range, constant 30 Ω or 100 Ω source internal resistance and flexible and humane operation mode, which can meet the requirements of production line quality assurance, incoming inspection and laboratory high precision measurement requirements. The appearance of the new-generation instrument has been changed to the internationally popular black colour, which is more beautiful than the old model. At the same time, it has inherited all its operation function keys and menus, and old users can seamlessly upgrade. In addition to providing RS232C, HANDLER, and GPIB (option) interfaces like the old models, the new generation of instruments further provides USB HOST and USB DEVICE interfaces. It provides more options for the instrument to be integrated in the automatic component sorting system, communicate with the computer and record the test process data.
Features
- 240 × 64 dot matrix graphic LCD display
- Humanized operation interface, easy to operate
- 02 % accuracy with 7 digits, or 0.05 % accuracy with 6 digits
- 10 mVRMS to 2.0 VRMS programmable test level
- Compatible with legacy bias source control
- High stability
- High accuracy
- The fastest speed is about 60 times or second
- Accurate load calibration function
- 30 Ω or 100 Ω selectable signal source output impedance
- 4-point frequency/level/list sweep function
- Direct reading, absolute deviation and relative deviation display
- 12 groups of internal instrument setting storage
- Built-in comparator: 10-bin (TH2816P/A+) or 4-bin (TH2816B+)
- Keypad lock function
Technical specifications
| Display | 9.45 in × 2.52 in (240 mm x 64 mm) dot-matrix LCD display |
| Output Impedance | 30 Ω or 100 Ω |
| AC Test Level | 10 mV to 2 VRMS, 10 mV steps |
| Test Parameter | L, C, R, |Z|, D, Q, G, B, X, θd, θr, Vm, Im, % |
| |Z|, R, X | 0.00001 Ω to 99.99 MΩ |
| G, B | 0.00001 μs to 99.99 s |
| C | 0.00001 pF to 9.99 F |
| L | 0.00001 μH to 99.99 kH |
| D | 0.00001 to 9.99 |
| Q | 0.00001 to 99999.9 |
| Θ (DEG) | -179.99 º to 179.99 º |
| Θ (RAD) | -3.14 to 3.14 |
| % | -999.99 % to 999.99 % |
| Measurement Terminal | 5 terminals |
| List Sweep | List sweep for up to 4 frequencies, signal levels and DC bias levels |
| Measuring Speed | Fasr +: 16.7 ms; Fast: 33 ms; Med: 100 ms; Slow: 667 ms |
| Equivalent Circuit | Series and Parallel |
| Ranging Mode | Auto, Hold |
| Trigger Mode | Internal, Manual, External and Bus |
| Averaging Rate | 1 to 255 |
| Correction Function | Open, Short and Load corrections |
| Display Mode | Direct, Δ ABS, Δ %, V/I (V/I monitor), Bin number and bin counter |
| Memory | 12 control settings memory for store or recall |
| Control | HANDLER |

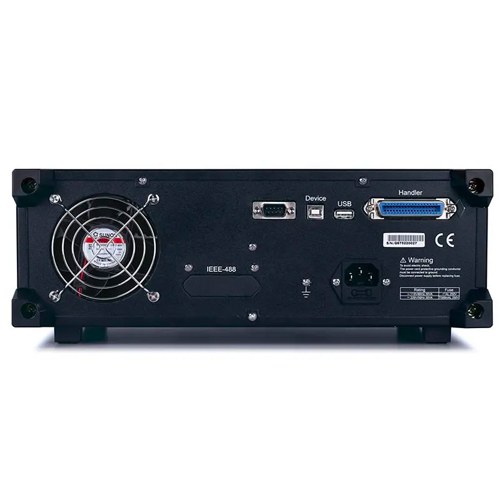

| Communication | RS232C, USB HOST, USB DEVICE, GPIB (Option) |
| Working Temperature, Humidity | 32 °F to 104 °F (0 ℃ to 40 ℃), less than 90 % RH |
| Voltage | 198 V to 242 V AC |
| Frequency | 47 Hz to 63 Hz |
| Power Consumption | Max 80 VA |
| Size | 13.78 in × 4.80 in × 12.20 in (350 mm x 122 mm x 310 mm) |
| Weight | 14.33 lb (6.5 kg) |
