Features
- 220 V automatic protection
- The thermal resistance and thermocouple are simulated in the form of temperature

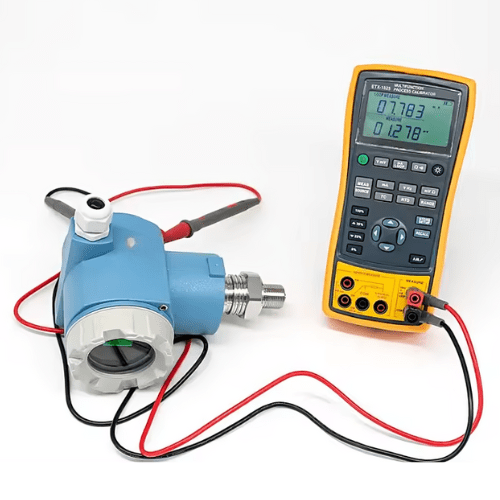

- Can simulate a two-wire transmitter
- The accuracy was 0.02 % (XY2725A ) ;0.05 % (XY2725B )
- Two isolated channels support synchronous measurement and output
- Can provide manual step, automatic step, 0-100% step and slope output function
- With white LED backlight
- Provide DC24 V circuit power supply calibration; ly for field debugging.
- Unique automatic identification of three-wire, four-wire connection mode
- Support customer self,Band on-off test function
- Thermocouple provide automatic and manual cold end temperature compensation
- Can add new thermocouple, thermal resistance type according to customer needs
Technical Specifications
| Accuracy | 0.02 % |
| Circuit Power | DC24 V |
| Current Signal | 0mA to 24 mA |
| Use Temperature | 14 °F to 131 °F (-10 ℃ to 55 ℃) |
| Storage Temperature | -4 °F to 140 °F(-20 ℃ to 60 ℃) |
| Relative Humidity | 0 to 90 % RH |
| Waterproof Grade | IP67 |
| Outline Dimension | 7.8 in x 3.6 in x 1.8 in (200 mm × 93 mm ×47 mm) |
| Weight | 1.4 lb (650 g) |
