Overview

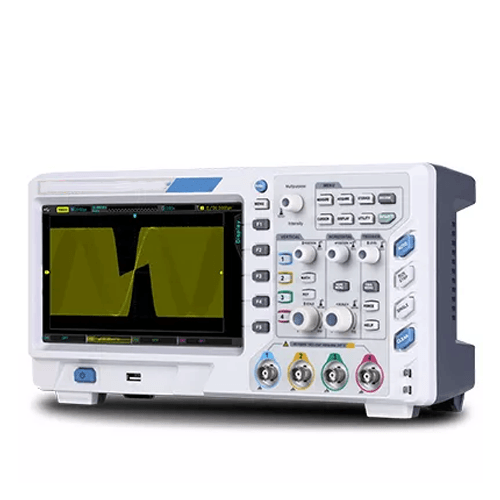

Emissions And Stack logic analyzer automotive digital multimeters are economical general-purpose digital phosphor oscilloscopes with 2/4 analog channels, 100MHz bandwidth, and 1GS/s sampling rate. Storage depth up to 56 Mpts. The waveform capture rate is up to 83,000wfms/s, the time base of four channels is independently adjustable, rich advanced triggering and bus decoding functions (optional), and rich peripheral interfaces, and the ultra-high-cost performance advantage.
Features

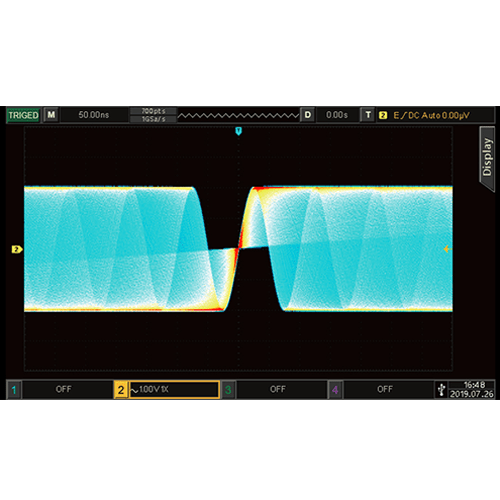

- Advanced Grayscale Display
- higher memory depth
- Higher waveform capture rate
- Independent time base adjustable
Technical Specification
| Bandwidth | 100 MHz |
| Channels | 4 |
| Sampling rate | 1 GS/s |
| Memory depth | 28 kpts or 280 kpts or 2.8 Mpts or 28 Mpts (each channel) |
| Waveform capture rate | 50,000 wf ms/s |
| Time base scale (s/div) | 5 ns/div to 50 s/div |
| Input impedance | (1 MΩ ±2%) // (20 pF ±3 pF) |
| Vertical scale (V/div) | 1 mV/div to 20 V/div (1 MΩ) |
| Waveform record | Max 65,000 frames |
| Trigger types | Edge, pulse width, slope, video |
| Waveform operations | A+B, A-B, AxB, A/B, FFT, logical operations, editable advanced operations |
| Auto measurements | Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, Rise Delay, Fall Delay, +Width,-Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSight, PreSht, Phase, 34 parameters in total |
| Number of measurements | Display 5 measurements at the same time |
| Measurement statistics | Mean, Max, Min, standard deviation and measurement counts |
| Frequency counter | 6-bit hardware counter |

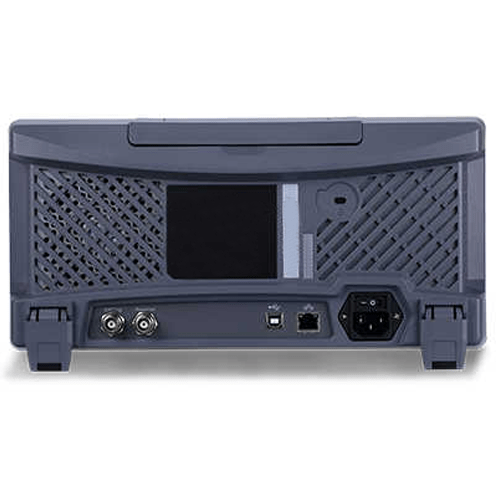

| Standard interfaces | USB Host, USB Device, LAN, AUX Out |
| Power | 100 V to 240 V AC RMS, 50 Hz or 60 Hz |
| Display | 8 in (20.32 cm) TFT LCD, WVGA (800 pixels x 480 pixels) |
| Product size | 13.23 in x 6.46 in x 4.25 in (336 mm x 164 mm x 108 mm) |
| Standard carton measurement | 17.72 in x 16.54 in x 11.02 in (450 mm x 420 mm x 280 mm) |
| Product weight | 7.71 lb (3.5 kg) |
