Overview

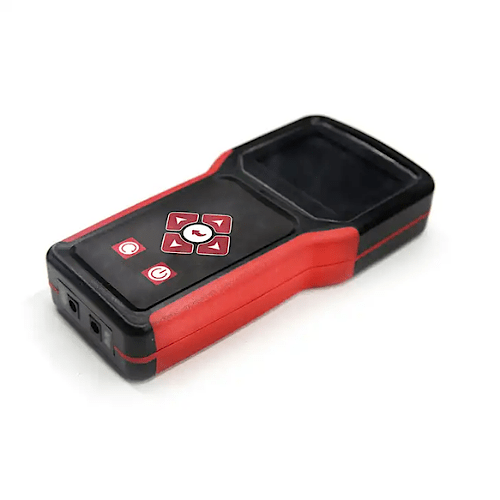

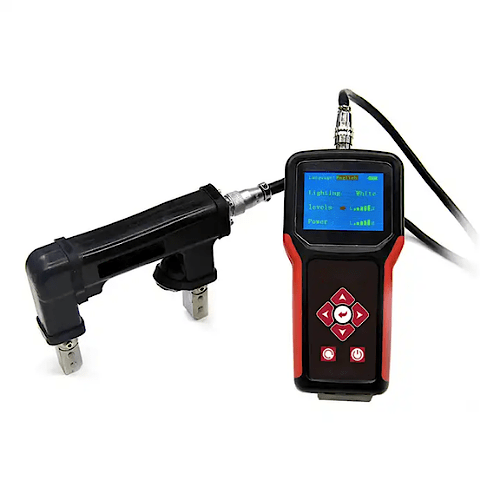

GAO Tek magnetic particle flaw detector adapts high-capacity lithium battery pack converse DC to AC through variable frequency, providing magnetic powder flaw detector with magnetic power supply. With low power consumption, it can continuously work for more than four hours after charging. It is especially suited for working in the wild and aerial area.
Features
- New power supply can enhance the testing depth and sensitivity.
- Pulse power supply can continuously work without chill time.
- All traditional advantages can test fast clear and accurately.
- Adjustable brightness and power and range can meet different demand.
- Small size with equipped bag can improve working efficiency.
Technical Specifications
| Complex Sensitivity | Clearly show the artificial notch of type A 15/100 standards. |
| Light | Fluorescence & white light |
| Working Voltage | DC 15 V to 21 V |
| Waveform | Alternative current |
| Pulse Amplitude | 42 V |
| Display Dimension | 3.5 in |
| Lithium Battery Voltage | 18 V |
| Lithium Battery Capacity | 8400 mAh |
| Voltage Of Lithium Battery | 21 V |
| Charge Time | 3 hrs. to 4 hrs. |
| Continuous Working Time | 3 hrs. to 4 hrs. |
| Yoke Polar Distance | 2.95 in x 7.87 in (75 mm x 200 mm) |
| Dimensions | 3.93 in x 8.03 in x 1.41 in (100 mm x 204 mm x 36 mm) |
| Unit Weight | 1.65 Ib (0.75 kg) (including battery) |
| Electromagnetic Yoke Weight | 3.30 Ib (1.5 kg) |
