Overview

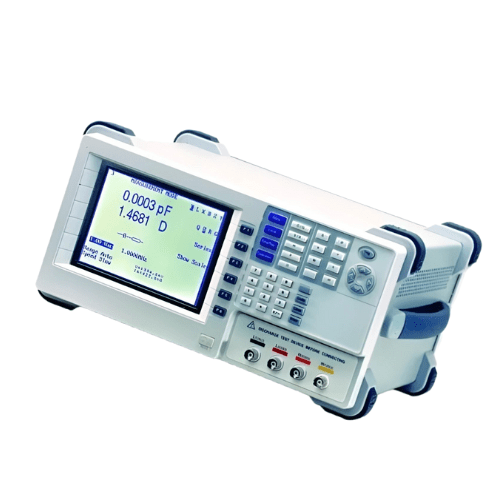

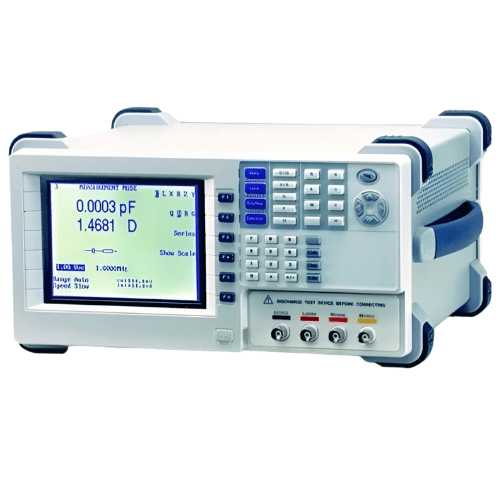

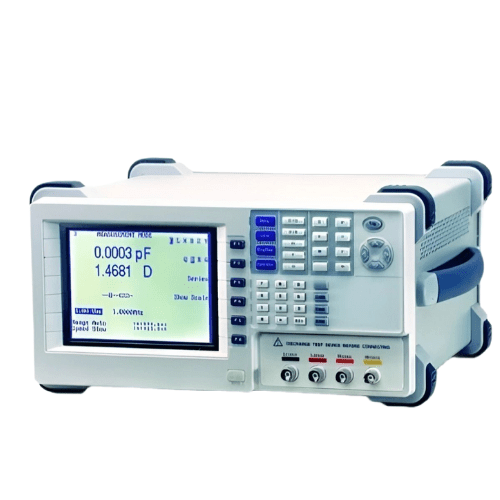

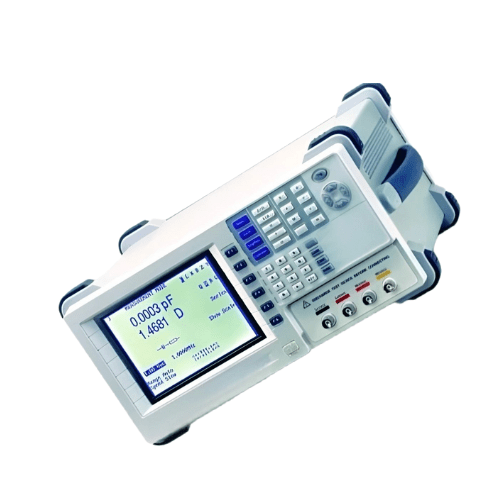

Emissions And Stack measurement high precision LCR meters includes a 10 MHz or 5 MHz or 1 MHz measurement frequency model with precise, multifunctional, and high-resolution features. It also includes DC resistance measurement and voltage or current monitoring functions. The multi-step testing function allows for customized measurement sequence programming with Pass or Fail judgment prompts on the screen. Each group of programming includes 30 testing steps, each of which can set testing parameters and limitations.
Features
- Wide testing frequency range of 20 Hz to 10 MHz
- Measurement function with voltage or current monitoring
- Multi step mode and chart Mode
- 1% basic accuracy & 6-bit resolution
- DC resistance measurement
- Standard RS-232C or GPIB interface
- Large LCD display and user-friendly interface
- PASS or FAIL testing function with judgment alarm
Technical Specifications
| Test Frequency | 20 Hz to 10 MHz |
| Basic Accuracy | ± 0.1 % |
| Standard Interface | RS 232 or GPIB |
| Measurement frequency model | 10 MHz or 5 MHz or 1 MHz |
| Resolution | 6 bit resolution |
| Size | 12.99 in × 6.69 in × 13.19 in (330 mm x 170 mm x 335 mm) |
| Weight | 22.05 lb (10 kg) |
