Overview

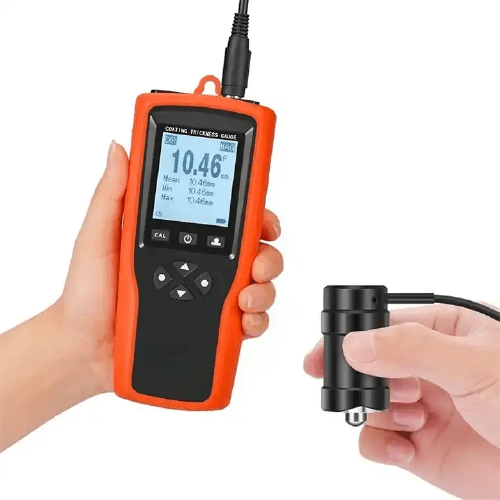

Emissions And Stack measurement range detector is a non destructive measure of the thickness of non conductive coating on metal surface and non ferromagnetic metal coating on ferromagnetic metal (such as iron, nickel and cobalt) surface. It is mainly used to measure the thickness of paint, anticorrosive coating, fire proof layer, enamel or ceramic protective layer on iron, stainless steel, aluminum or copper surface.
Features
- Resolution up to 1μm
- Measuring range 0 to 0.7 in
- Support for continuous measurement
- Display maximum, minimum, average
- Red backlight over limit alarm
- Standardized menu interface
- Support user calibration
- Display with backlight
- Automatic shut down
- Battery protection
Technical Specifications
| Operating Environment | Temperature: 14°F + 122°F Temperature: (-10℃ + 50℃) Humidity: 20 to 90% RH |
| Power Supply | 3 AAA 1.5V alkaline batteries |
| Storage Capacity | 2000 measurements |
| Dimensions | 6.8 in x 2.8 in x 1.5 in (174 mm x 73 mm x 40 mm) |
| Weight | 0.44 lb (200 g) |
| Resolution | 1 μm 0 to 0.1 in 1 μm (0 to 5 mm) 10 μm ≥ 0.1 in 10 μm (≥5 mm) |
| Minimum Measurement Area | Diameter 1.5 in Diameter (40 mm) |
