Overview

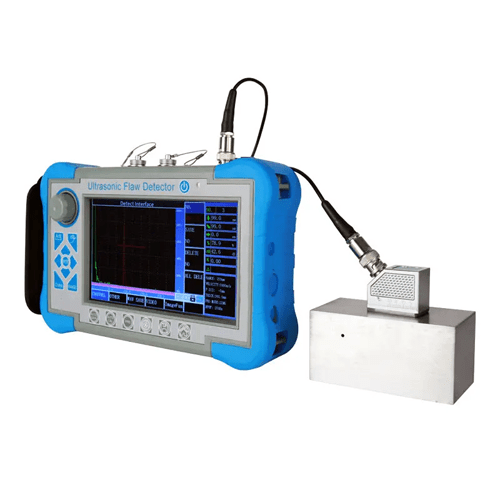

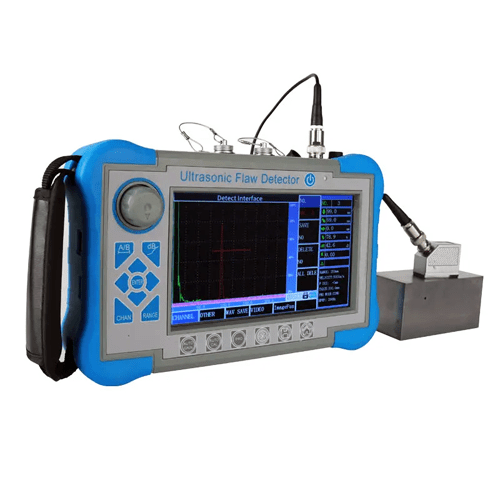

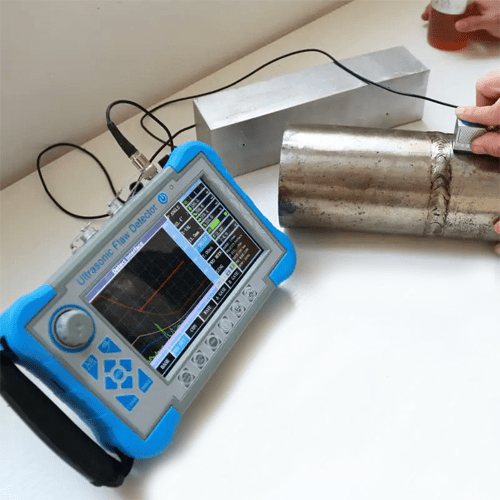

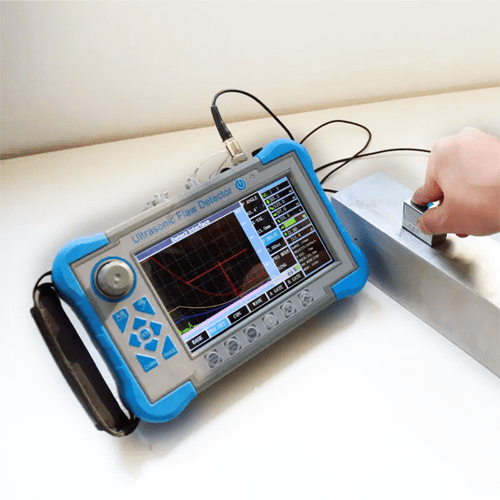

Emissions and Stack Metal Welding Flaw Detector is advanced type, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the workpiece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.
Technical Specifications
| Measuring Range (Mm) | Scan range (mm): 0 mm to 15000 mm |
| Material Sound Speed (m/s) | 1000 m/s to 15000 m/s |
| Gain Adjustment | 0 dB to 110 dB |
| Flaw Detection Sensitivity Margin | ≥62 dB |
| Dynamic Range | ≥32 dB |
| Flaw Detection Channel | 300 |
| Battery | Lithium (Li) Battery |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Working Humidity (RH) | 20% to 90% |
| Interface Type | BNC |
| Dimensions (Mm) | 9.64 in x 6.1 in x 2.16 in (245 mm x 155 mm x 55 mm) |
| Weight(kg) | 2.6 lb. (1.18 kg) |
