Overview

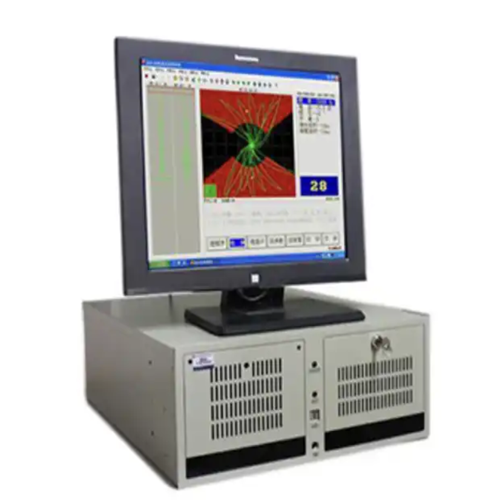

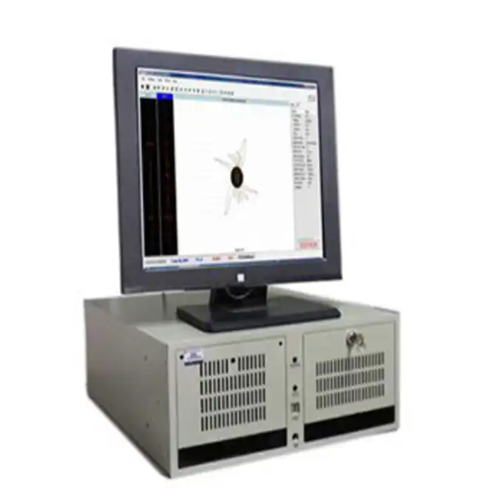

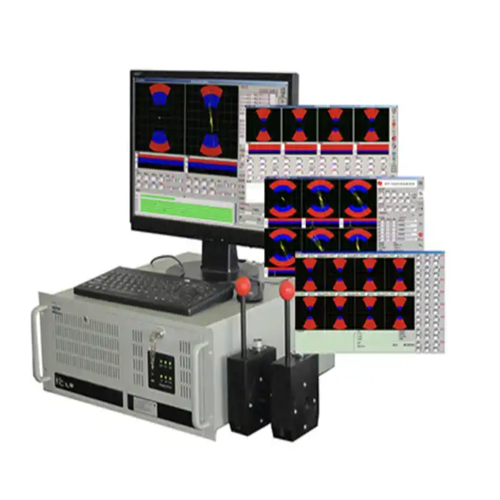

Emissions and Stack multi channel flaw detector for cables, wires, metal pipes, metal rods are an intelligent digital eddy current flaw detector is a large-scale imported integrated circuit, combined with the most advanced eddy current technology, photoelectric technology, microcomputer control of automatic testing machine. With exquisite design of mechanical transmission device, the formation of a complete electromechanical integration system, is the only complete system of automatic eddy current inspection machine. The software written by WINDOWS operating platform makes the instrument more convenient and intelligent. The instrument has stable and reliable performance, high automation, fast detection speed, and is dedicated to the online and offline high-speed detection of metal pipes, rods and wire auto parts. It is a general instrument for online, offline, pre-service and in-service detection of metal components in automotive, aerospace, petrochemical, metallurgy, machinery and other industries.
Features
- Peak Hold
- Automatically searching the peak wave inside the gate and hold it on the display
- Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter
- Continuous Record
- Record the display continuously and save it to the memory inside the instrument
- Defect Localization
- Localize the defect position, including the distance, the depth and its plane projection distance
Technical Specification
| Detection channels | 1 to 16 |
| Frequency range | 50 Mhz to 10 Mhz |
| Gain range | 99 db |
| Multiple display modes | impedance, time base |
| Display mode | solid line, fade |
| Dimensions | 7.98 in x 3.66 in x 87.11 in (277 mm x 183 mm x 72 mm) |
| continuously adjustable | 0.5 dB |
| Maximum resolution | 0.76 in ( 0.01 mm) |
| High pass | 200 Hz |
| Digital filter | 200 Hz |
| With delay marking | 0.001 s to 20.000 s |
