Overview

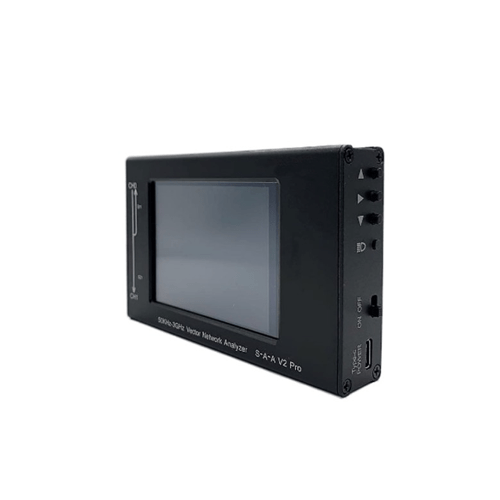

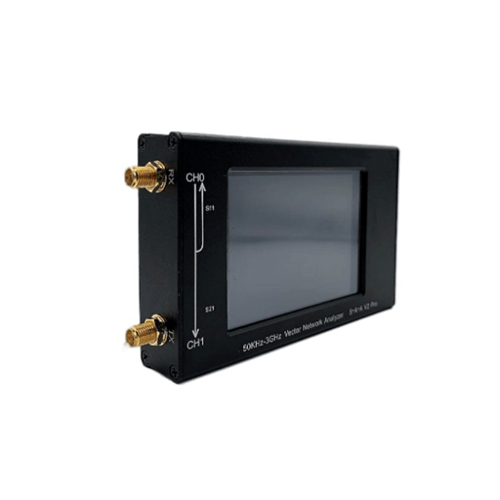

Emissions And Stack network analyzer is a new generation product developed based on SAA 2 design and greatly upgraded performance. The measurement range is extended to 50 KHz to 3000 MHz, and the dynamic range is larger, reaching 80 db, which can be used to debug the UV frequency. The duplexer, the measurement is more accurate, more practical, simple, flexible and fast operation interface.
Technical Specification
| Measuring frequency range | 50 kHz to 3000MHz |
| Output power | -9 dBm |
| Frequency accuracy | <0.5 ppm |
| S21 dynamic range | 70 dB (1.5 GHz), 60 dB (3 GHz) |
| S11 dynamic range | 50 dB (1.5 GHz), 40 dB (3 GHz) |
| Display tracking | 4 tracks |
| Screen | 4.3 in (10.92 cm) IPS LCD screen IPS TFT (800 x 480 PPI) |
| Battery | 5000 mah super-capacity lithium battery |
| Size | 4.92 in x 2.95 in x 0.78 in (125 mm x 75 mm x 20 mm) |
| Weight | 0.88 lb (400 g) (with plastic packing box) |
