Overview

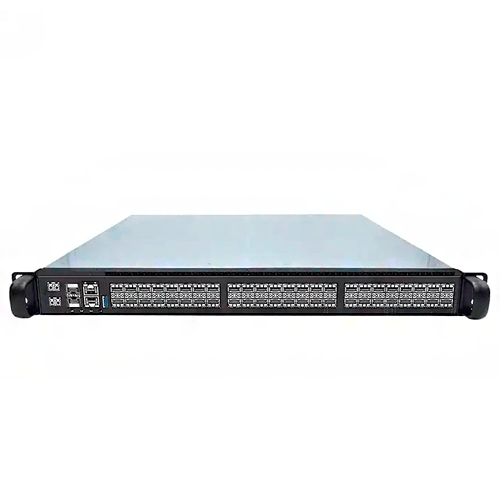

Emissions And Stack network management platform DWDM has the advantages of transparent service, low delay, high capacity, low energy consumption, simple operation and stable and reliable equipment. Maximum support for 1.2 T service access interaction capacity. Supporting single wave 10 G,100 G, 200 G rate, suitable for SDH, SAN, SONET, ETHERNET, OTN, DCI interconnection, etc., It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
Features
- Support 10 G up to 48 channels of service
- Ultra-high integration design
- Supporting multiple access
- Supporting CDR function
- Supporting Software to close the port
Technical Specification
| Maximum capacity | 12 x 100 G bidirectional transmission 48 x 10 G bidirectional transmission |
| Wavelength range | DWDM C-Band 100 GHZ or 50 GHZ |
| Service access types | SDH, SAN, SONET, ETHERNET, OTN |
| Transmission distance | Support transmission distance: 6.21mi (10 KM), 24.85 mi (40 KM), 49.70 mi (80 KM), etc. (optional). |
| Network-level protection | Line side 1+1 protection. |
| Network management mode | CLI, Net River, WEB. |
| Relative humidity | 5% to 95% no condensation. |
| Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standard. |
| Input power supply | AC voltage range Supports 90 V to 264 V 50 HZ or 60 HZ,DC voltage range Supports -36 V to 60 V. |
| Power consumption | <200 W. |
| Product dimension | 19 in x 1.73 in x 23.62 in (482.6 mm x 44 mm x 600 mm). |
| Working temperature | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Storage temperature | -40 °F to 176 °F (-40 ℃ to 80 ℃) |
