Overview
Emissions And Stack optical cable fiber transceiver FP+, SFP28, QSFP+, QSFP 28, QSFP 56, QSFP 112 and QSFP-DD series. They use Active Optical Cables receptacle. They are compliant with the SFF-8472, SFF-8432, SFF-8436, QSFP 28 MSA, SFF-8636, QSFP 56 MSA, QSFP-DD MSA, QSFP 112 MSA, CMIS 4.0, 5.0 and 10 G, 25 G, 40 G, 100 G, 200 G, 400 G, 800 G BASE Ethernet.

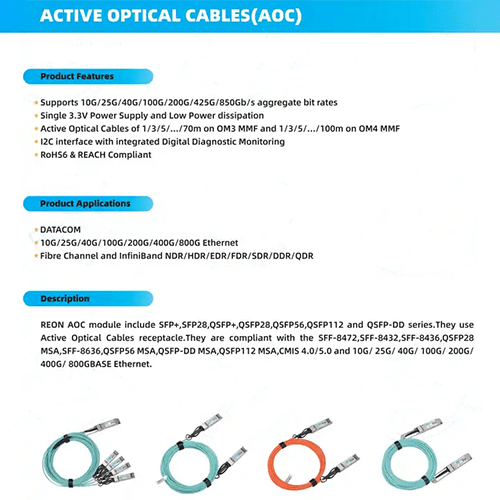

Features
- Supports 10 G, 25 G, 40 G, 100 G, 200 G, 425 G, 850 G bit rates
- Single 3.3 V Power Supply and Low Power dissipation
- Active Optical Cables of 1, 3, 5, …, 70 m on OM3 MMF
- RoHS 6 & REACH Compliant
- DATACOM
- 10 G, 25 G, 40 G, 100 G, 200 G, 400 G, 800 G Ethernet
- Fiber Channel InfiniBand NDR, HDR, EDR, FDR, SDR, DDR, QDR
Technical Specifications
| Use | DATACOM, InfiniBand, Fiber Channel, IEEE 802.3 ae |
| Network | Wireless Lan, TCP, POE, GPRS, Wi-Fi, 4G, GSM, 3G, IEEE 802.3 ae STM-64 OC-192 |

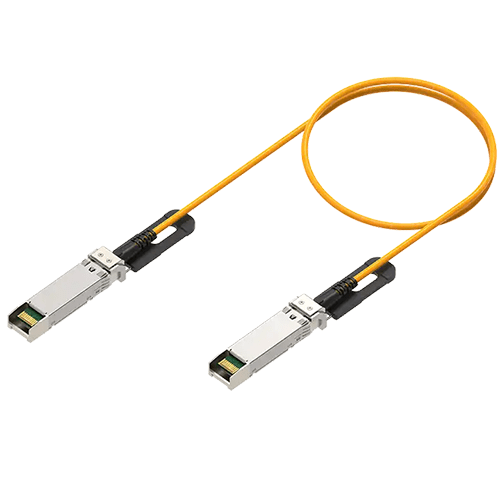

| Form Factor | SFP+ AOC |
| Media Type | Multimode |
| Data Rate (bps/Hz) | 10.3125 G to 11.3 G |
| Max Distance | 1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft), 10 m (33 ft), 15 m (49 ft), 20 m (66 ft), 25 m (82 ft) |
| Transmitter Type | 850 nm VCSEL |
| Receiver Type | PIN |
| Connector Type | AOC |
| Protocols | InfiniBand, Fiber Channel, IEEE 802.3 ae, SFF-8472, SFF-8431, SFF-8432 |
| Case Temperature | 32 ℉ to 158 F (0 ℃ to 70 ℃) |
