Overview

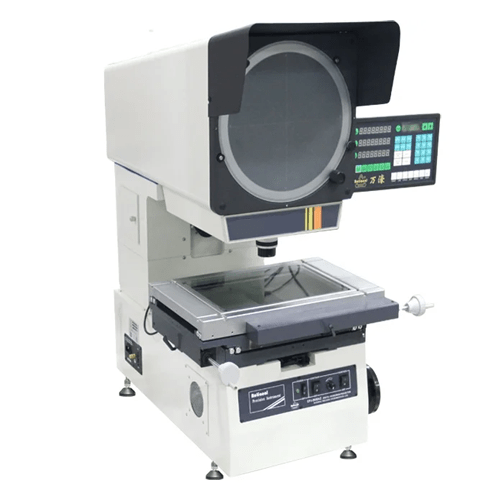

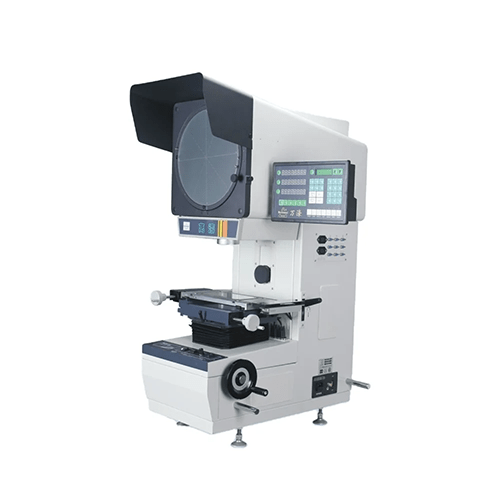

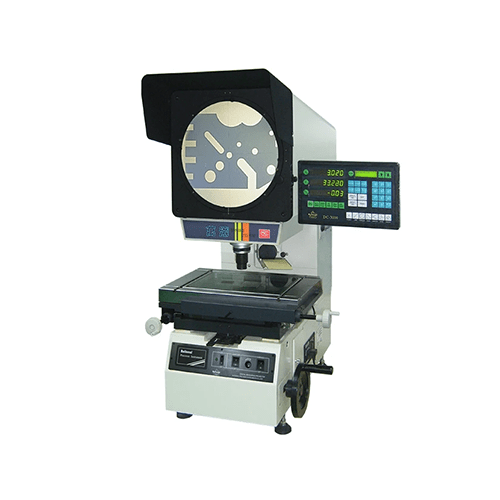

Emissions And Stack optical comparator is an ergonomic and reliable measuring instruments with simple and neat appearance. Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, Rational Profile Projectors are well known as reliable and cost-effective systems and are widely used for both direct measurement and comparative measurement. The machine has proved itself since it’s initially launched 15 years ago, and the series of systems still dominate the market in East Asia. You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective measuring system.
Features
- Ergonomic and compact machine
- Easy to operate
- Resolution of linear scale: 0.5 um
- Powerful Digital Readout to support easy and accurate measurement
- Reliable and cost-effective
- Precise and accurate
- Low maintenance cost
- Optional Proprietary software
Technical Specification
| X-axis Travel | 2.95 in (75 mm) |
| Y-axis Travel | 2 in (50 mm) |
| Metal Table Size | 10.23 in x 5.98 in (260 mm × 152 mm) |
| Glass Table Size | 5 in x 4 in (125 mm × 100 mm) |
| Resolution | 0.5 |
| Indication Error | E1XY = (2.5 + L or 100) |
| Z-axis Travel | 3.5 in (90 mm) (focusing) |
| Power Supply | AC (Alternate current) 100 V to 240 V 50 Hz or 60 Hz. Total power: 400 W |
| Size | 12.28 in (312 mm) |
| Rotary Range | 0° to 360° |
| Resolution | 1° or 0.01° |
| Magnification | 10× (Optional) |
| Field Of View | 1.18 in (30 mm) |
| Working Distance | 3 in (77.7 mm) |
| Max. Measuring Height | 3.46 in (80 mm) |
| Dimension | 30 in x 21.6 in x 43 in (770 mm × 550 mm × 1100 mm) |
