Overview

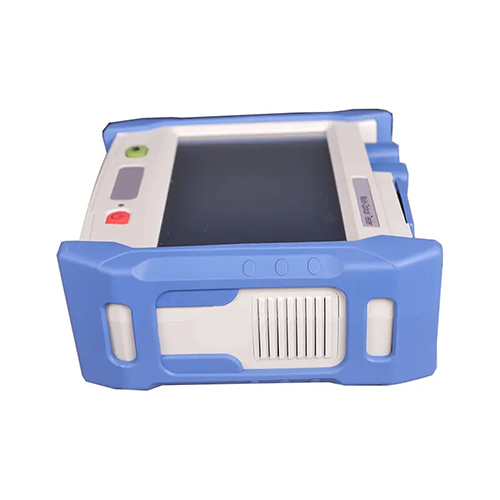

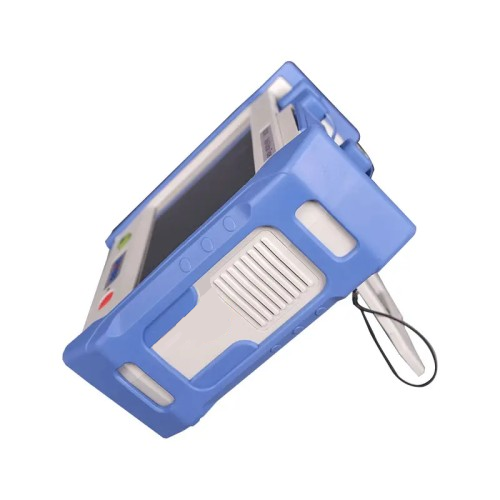

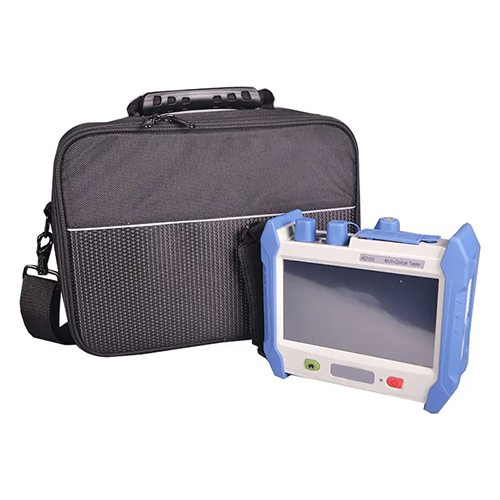

Emissions And Stack optical fiber tester power meters mark a giant leap forward in fiber-optic measurement performance and utility. Featuring intuitive touchscreen controls, a modular platform, real-time data analysis, and more, they are the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTH networks – as well as verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered. Dual or multiple wavelengths from 28 dB to 45 dB available.
Features
- 7 in (17.78 cm) 800 x 480 LCD touchscreen
- 2.62 ft (0.8 m) event dead zone
- 9.84 ft (3 m) attenuation dead zone; excellent short distance performance
- Broad dynamic range coverage (28 dB to 45 dB)
- Min. 1.96 in (5 cm) resolution
- Intelligent analysis of events
- Excellent stability and repeatability
- “Fiber Pass” intelligent analysis feature
- Multiple options for your measurement need
- Complete user data ports; support LAN, USB, SD, & more
- The results support a variety of analysis functions
Technical Specifications
| Wavelength | 1310 nm or 1550 nm |
| Wavelength Accuracy | ±20 nm |
| Dynamic | 30 dB or 28 dB |
| Event Dead Zone | ≤ 4.92 ft (1.5 m) |
| Attenuation Dead Zone | ≤ 19.68 ft (6 m) |
| Distance Range | 0.06 mi (100 m), 0.24 mi (400 m), 0.93 mi (1.5 km),1.86 mi (3 km), 3.72 mi (6 km), 7.45 mi (12 km), 15.53 mi (25 km), 31.06 mi (50 km), 62.13 mi (100 km), 124.27 mi (200 km), 248.54 mi (400 km) |
| Sampling Resolution | 0.16 ft to 41.99 ft (0.05 m to 12.8 m) |
| Sampling Point | 159.071 mi (256000 m) |
| Distance Accuracy | ± (2.46 ft (0.75 m) + 0.005 % x Distance +Sampling Resolution) |
| Loss threshold | 0.01dB |
| Loss resolution | 0.001 dB |
| Pulse Width | 3 ns, 5 ns, 10 ns, 30 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs, 20 µs |
| Measurement Time Range | 5 s to 5 min, real time |
| Memory Capacity | >10,000 OTDR traces, exportable to USB or Computer |
| Other Parameter | |

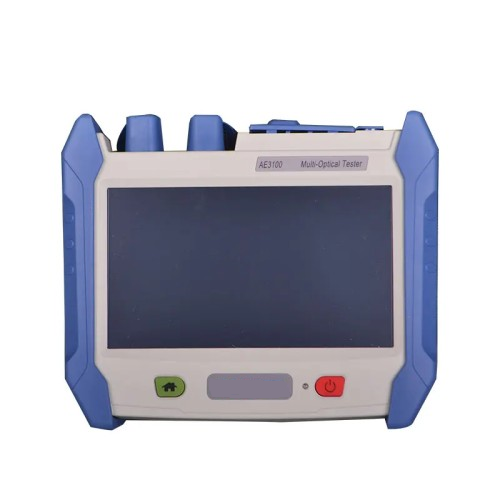

| Display | 7 in (17.78 cm) 800 × 480 dot matrix TFT touch screen |

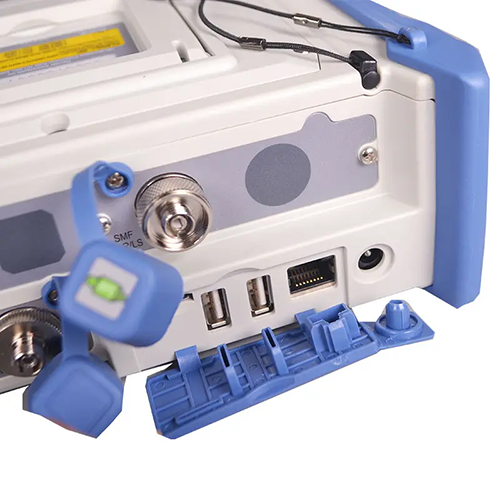

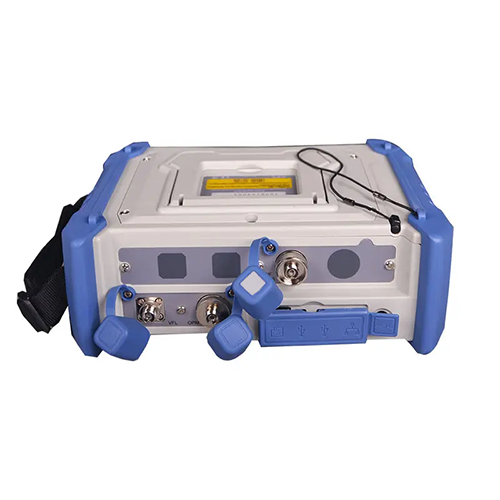

| Interface | USB 2.0 x 2, RJ45 × 1, LAN × 1(10 M or 100 M), TF × 1 (Max, 64 GB) |
| Battery autonomy | 11 hrs of measurement usage (Max) |
| Language | Chinese, English, Spanish, Portuguese, French, Russian, Italian (German, Korean and Arabic are optional) |
| Dimension | 8.11 in x 6.73 in x 2.95 in (206 mm x 171 mm x 75 mm) |
| Weight | < 4.41 lb (2 kg) |
