Overview
Emissions and Stack paint mini portable colorimeter is widely used in car paint spraying, hardware, paint and coating, plastic, and other fields. Through the mobile APP, two clicks can realize the color difference comparison. It also has a QC function for automatic qualification judgment. There are 7 color spaces to choose from such as Lab, Lch, etc. when measuring color. Built-in multiple electronic color charts, and can quickly match the three closest color card numbers.
Features
- Adopts D/8 illumination with a wide range of applications

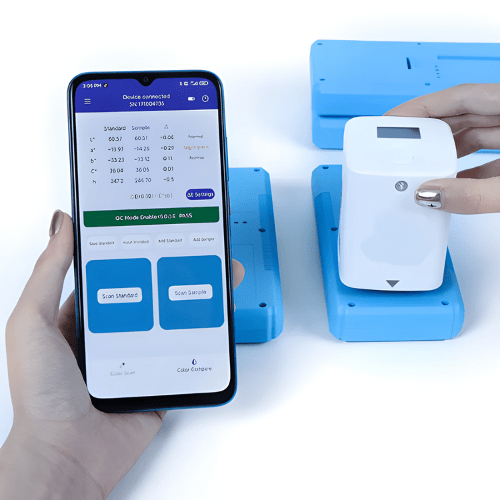

- Two clicks can realize the color difference comparison with mobile APP
- Accurate measurement, repeatability ΔE x ab ≤0.03
- 7 color spaces to choose from such as Lab, Lch, etc
- It can create a personal color chart
- Store large amounts of color data, and can share test results
- Built-in multiple electronic color charts

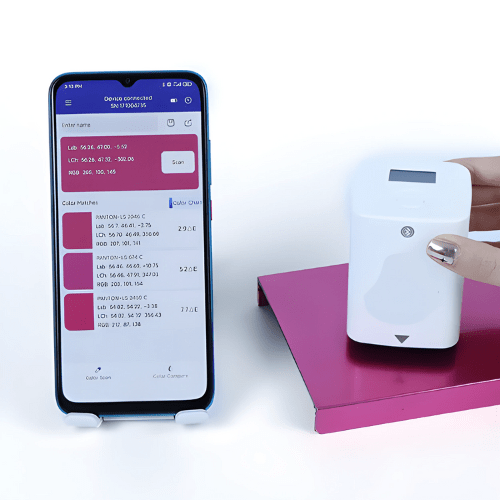

- Can quickly match the three closest color card number
- It can pass the authority metrology institute inspection
- Support QC function
Technical Specifications
| Illumination Geometry | D/8, Specular Component Include, SCI |
| Illumination Light Source | Full spectrum LED light source |
| Measurement Conditions | Light source D 65, field of view 10° |
| Measuring Time | about 1 s |
| Color Spaces | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color Difference Formulas | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc, 2:1, ΔE x cmc, 1:1, ΔE x 00 |
| Repeatability | Standard deviation ΔE x ab ≤ 0.03, Measurement condition the average value of 30 measurements on the white tile at an interval of 3 s after calibration |
| Power Supply | Rechargeable lithium battery 3.7 V at 700 mAh, can continuously measure 10,000 times underfull charge |
| Display | 0.96 in (24.384 mm) OLED |
| Data Transmission | Bluetooth |
| Charging Port | USB, Type-C |
| Measuring Aperture | 0.3 in (8 mm) |
| Operating Temperature | 32 ℉ to 113 ℉ (0 ℃ to 45 ℃), 0% RH to 85% RH, no condensation |
| Storing Temperature | -13 ℉ to 131 ℉ (-25 ℃ to 55 ℃), 0% RH to 85% RH, no condensation |
| Dimension | 2.24 in x 2.24 in x 3.50 in (57 mm x 57 mm x 89 mm) |
| Weight | About 4.44 oz (126 g) |
