Overview

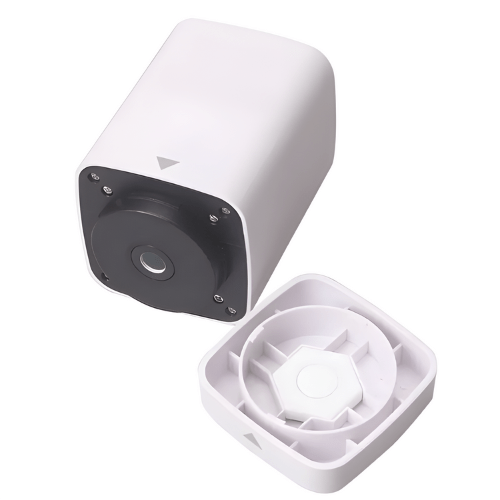

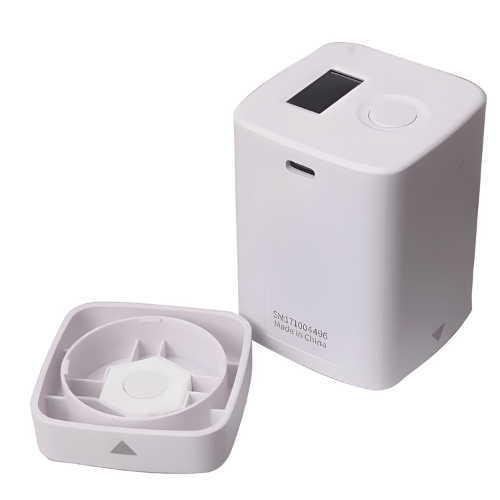

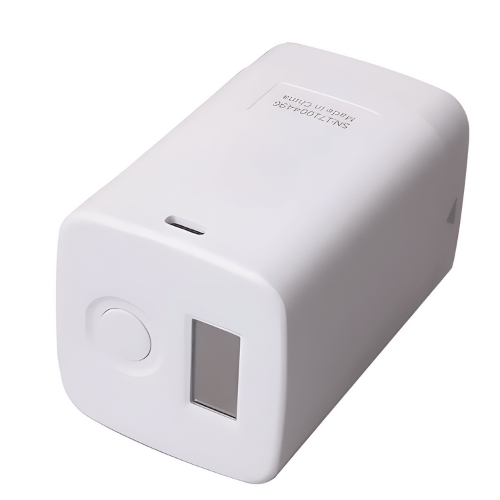

Emissions and Stack pocket color measurement colorimeter portable App smart colorimeter is designed to provide users color measurement and stable color comparisons for materials and products wherever color control is important. This colorimeter is an exquisite and portable color difference measurement tool. This portable colorimeter is widely used in paint, test paper printing, decorations, leather and cotton, textile printing, plastics and other industries. Its portable colorimeter has Bluetooth function and it need to be used with the matching mobile APP. It has many color libraries such as Pantone. After connecting to the mobile phone APP via Bluetooth, the meter can quickly measure the color and make color comparisons using a digital method. After quickly matching the color in the color library, you can share the colors with your friends.
Technical Specifications
| Illumination geometry | 45 or 0 (45°annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Measuring aperture | 0.31 in (8 mm) |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | about 1 s |
| Color space | CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex |
| Color difference formula | ΔE x ab, ΔE x uv, ΔE x 94, ΔE x cmc(2:1), ΔE x cmc(1:1), ΔE x 00 |
| Repeatability | Standard deviation ΔE x ab is within 0.03 (average value of 30 measurements on whiteboard every 3s after calibration) |
| Power supply | Rechargeable lithium battery 3.7 V, 700 mAh, can continuously measure 10,000 times under full power |
| Data transmission | Bluetooth |
| Charging port | USB (Type-C) |
| Operating temperature | 32 °F to 113 °F (0 ℃ to 45 ℃) |
| Humidity | 0% RH to 85% RH |
| Storing temperature | -13 °F to 131 °F (-25 ℃ to 55℃) |
| Humidity | 0% RH to 85% RH |
| Dimension | 1.25 in x 1.25 in x 2.77 in (31.7 mm ×31.7 mm ×70.4mm) |
| Weight | 1.79 oz (51 g) |
