Overview

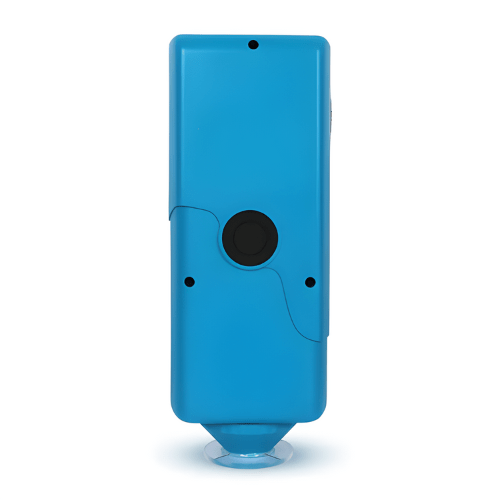

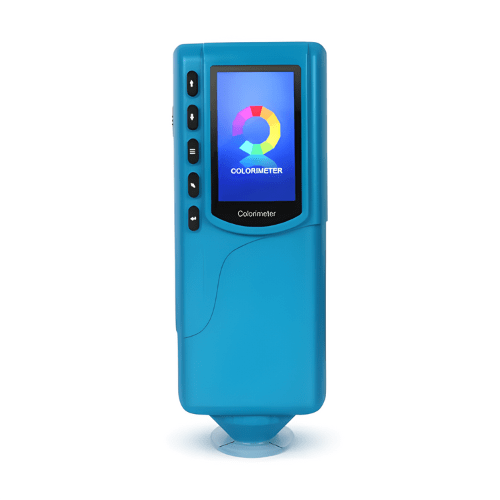

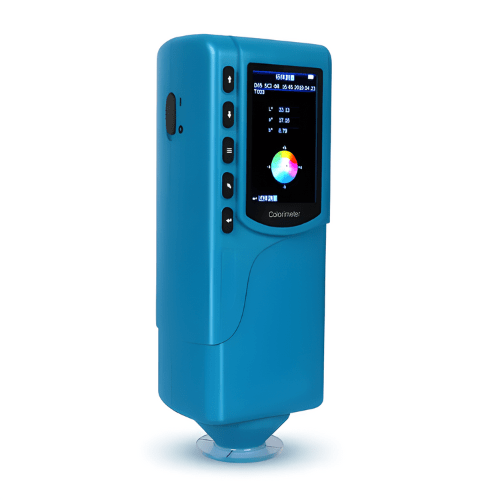

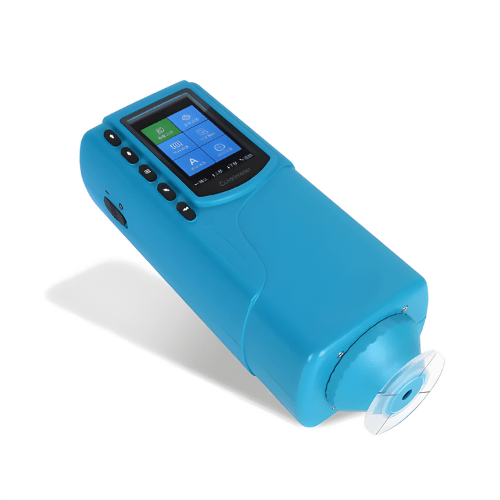

Emissions and Stack Portable Colour Difference Tester Colorimeter is an economical colorimeter with independent property rights, which can be quickly measured without connecting to a computer. It has the advantages of accurate data, simple operation, and convenient carrying. The low-power design 3200 mAh large-capacity lithium battery ensures that the instrument can be moved for a long time. Measurement, as an accurate measurement tool for colour difference value Delta E, is an affordable choice for users.
Features
- 3200 mAh large-capacity lithium battery
- Ergonomic design
- The cross is accurately positioned
- Can quickly align to the measured part
- ETC real-time calibration technology
Technical Specifications
| Lighting Source | LED light source |
| Sensor | Silicon photodiode |
| Measuring Caliber | 0.3 in (8 mm) platform measuring caliber |
| Color Space | CIE LAB |
| Color Difference | Formula Delata E x ab |
| Observer Angle | CIE 10° standard observer |
| Observation Light Source | D 65 |
| Measuring Time | 1.5 s |
| Repeatability | 0.3 in (8 mm), Delata E x ab within 0.08, after the instrument is warmed up and corrected, the average value of 30 measurements on the whiteboard at an interval of 5 s |
| Positioning Method | Cross platform positioning |
| Battery Level | Rechargeable Li-ion battery 3.7 V at 3200 mAh |
| Illumination Light Source Life | 5 years greater than 1.6 million measurements |
| Display | TFT true color 2.8 in (71.12 mm) at 16:9 |
| Interface | USB for power only |
| Store Data | 100 standard samples, 10,000 samples |
| Operating Temperature Range | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Storage Temperature Range | -4 ℉ to 122 ℉ (-20 ℃ to 50 ℃) |
| Size | 8.07 in x 2.64 in x 3.15 in (205 mm x 67 mm x 80 mm) |
| Weight | 14.11 oz (400 g) |
