Overview

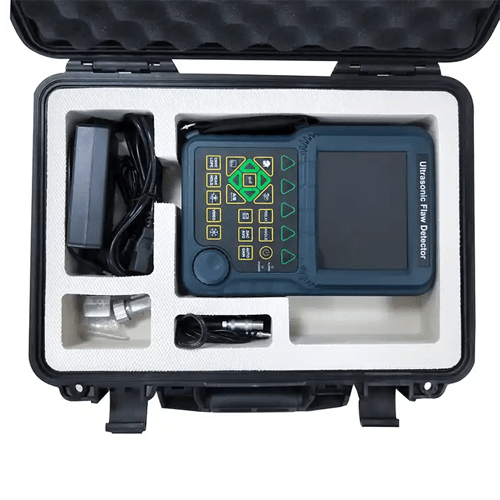

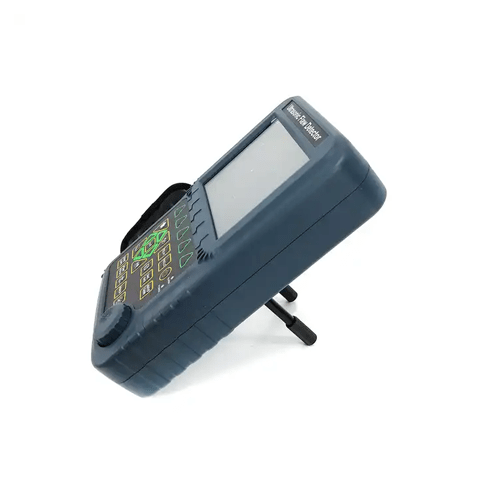

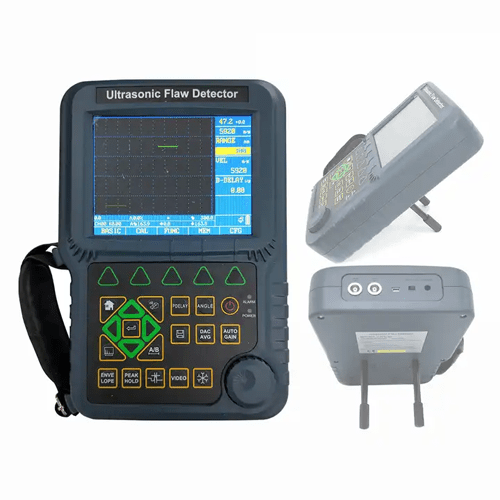

Emissions and Stack portable flaw detector can quickly, non-destructively and accurately detect various defects (cracks, inclusions, blowholes, etc.) inside the workpiece. The product is unique in design, easy to operate and durable. It adopts all-English true color liquid crystal display. Different color schemes can be selected according to the environment.
Technical Specifications
| Examination range | 0 in to 393.66 in (0 to 9999 mm) |
| Working frequency | 0.2 MHz to 20 MHz |
| Sound speed range | 39,370 in/s to 590,551.18 in/s(1000 m/s to 15000 m/s) |
| Dynamic Range | ≥ 36 dB |
| Vertical linearity error | ≤ 2.5% |
| Horizontal linearity error | ≤ 0.1% |
| Discrimination | > 40 dB (5P 14) |
| Sensitivity margin | > 65 dB (deep 200mm 2 flat bottom hole) |
| Digital suppression | 0% to 80%, does not affect linearity and gain |
| Electrical noise level | ≤ 8% |
| Probe type | Straight probe, oblique probe, dual crystal probe,penetration probe |
| Gate | Incoming gate, loss gate; single gate reading,double gate reading |
| Pulse amplitude | Low (300 V), medium (500 V), high (700 V) grading options |
| Pulse Width | Continuous adjustment in the range of 0.1 μs to 0.5 μs tomatch probes of different frequencies |
| Probe damping | 100 Ω, 200 Ω, 400 Ω optional |
| Real-time sampling of hardware | High resolution 10-bit AD converter with sampling speed of160 MHz and high waveform fidelity |
| Detection method | Positive half wave, negative half wave, full wave, radio frequency detection |
| Filter band | 0.2 MHz to 20 MHz, fully automatic matching according to probe frequency |
| Data storage | 100 sets of flaw detection parameter channels, 1000 flawdetection echo signals and parameters |
| Communication Interface | USB 2.0 high speed communication transmission interface |
| Power supply | DC 9 V; lithium battery works continuously for more than8 hrs |
| Ambient temperature and humidity | Temperature: 14 °F to 131 °F (-10 ℃ to 50 ℃)Humidity: 20% RH to 95% RH |
| Dimensions | 10.35 in x 6.69 in x 2.40 in(263 mm × 170 mm × 61 mm) |
