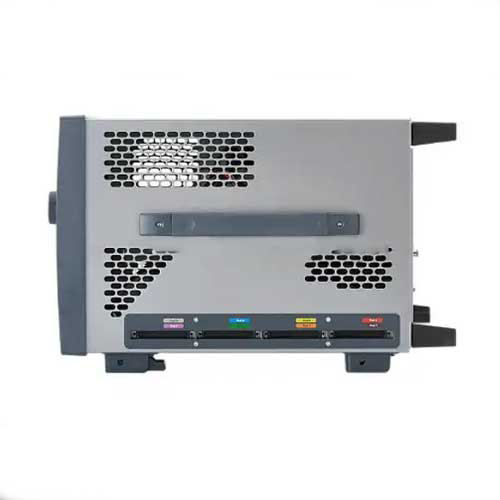

Features
- 34 channels, 350 MHz state, 12.5 GHz timing

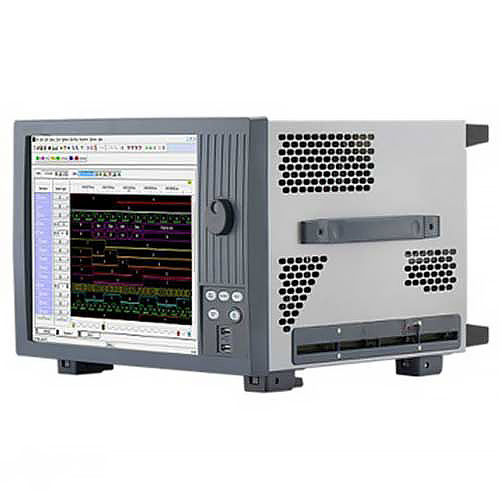

- 15 in (38.1 cm) touchscreen, fast data transfer via USB and LAN
- 4 GHz trigger sequencer captures high-speed events
- Timing: Up to 2.5 GHz or 5.0 GHz, 128 Mb or 256 Mb memory
- 5 GHz timing zoom, 256 K memory depth
- State analysis: 1.4 Gb or s data rates, 700 MHz clock
- Automated threshold setup, simultaneous eye diagrams
Technical specifications
| Logic Analyzer Configuration | Channels: 34 State Clock Speed: 350 MHz Timing Zoom: 12.5 GHz (full channel), 2.5 GHz (half channel) Timing: 2.5 GHz (full channel), 5.0 GHz (half channel) Depth: 2 Mb (standard) |
| Display | 15 in (38.1 cm) Colour Touch-Screen Display |

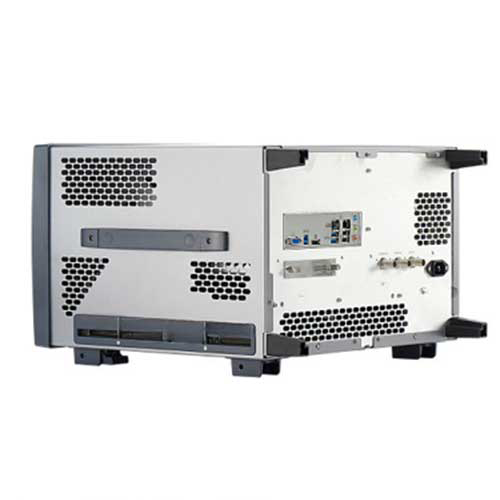

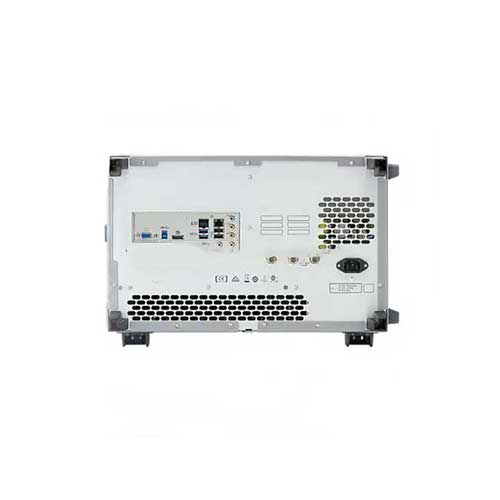

| Storage and Connectivity | Built in Removable SSD Drive USB 3.0 Ports LAN for Fast Data Transfer and Storage |
| Trigger Sequencer | 1.4 GHz Trigger Sequencer to Capture High-Speed Events |
| Timing Analysis (Asynchronous Sampling) |
Timing Resolution: Up to 2.5 GHz (full channel), 5.0 GHz (half channel) Deep Memory: Up to 128 Mb (full channel), 256 Mb (half channel) Timing Zoom: 12.5 GHz (80 PS) with 256 K Memory Depth |
| State Analysis (Synchronous
Sampling) |
State Data Rates: Up to 1.4 Gb or s State Clock Rates: Up to 700 MHz Automated Threshold or Sample Position Setup Simultaneous Eye Diagrams on All Channels |
| Configuration Considerations | Variety of Probe Options (Single-Ended and Differential) Additional Application Software for Debug and Analysis |
| Included Accessories | Upgradable Speed and Memory Depth (Using 16861AU) Keyboard, Mouse, Accessories Bag, Power Cord |
