Overview

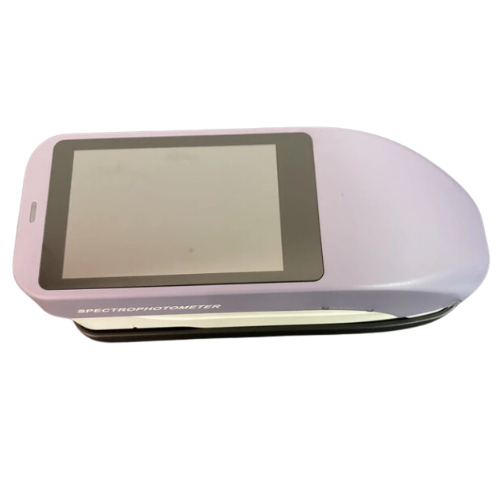

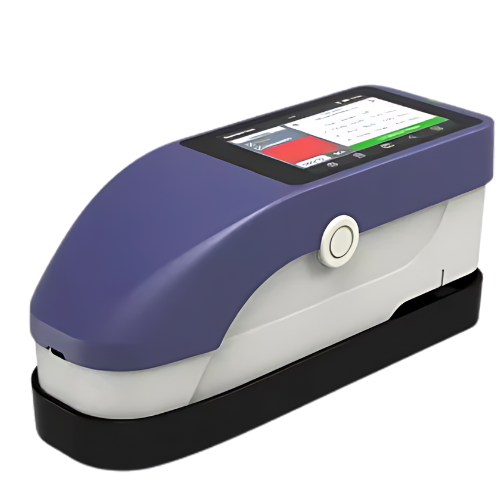

Emissions and Stack portable spectrophotometer – high precision has rapid measurement, accurate data, and fashionable appearance. It adopts a combination of LED light source with high life and low power consumption, which enables you to accurately position and measure the sample surface at your whim. It can be widely used in paint, plastic, resin, textile, leather, and other fields, to help you complete the ideal color control.
Features
- Full-spectrum LED for stable data in each measurement
- High-precision beam splitting ensures accurate LAB value
- Selectable 8 or 4mm diameter for versatile sample testing
- Unique, lightweight body design for easy portability
- Super dirt-resistant standard whiteboard for reliable measurements
Technical Specifications
| SCI SCE | SCI |
| Light Type | High accuracy full spectrum LED |
| Fix Position | Visual |
| Repeated Accuracy | △E ≤ 0.07 |
| Color Space | CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A, T, E, M or I) Field density, Munsell, Reflectance (bright vision), Blackness, YI yellow, Isochromatic spectrum (light jumping), hiding power, tint, strength or dye strength, Color fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunte r whiteness (ASTM), Whiteness (CIE), AATCC whiteness, R457 or ISO2470 whiteness, GB or T17644 whiteness |
| Color Difference Formula | △E x ab, AE x ch, AE x uv, AE x HunterLab, AE x CMC (l:c), AE x 94, AE x 00, AE x sR GB, AE x BFD, M x FCMII, AE x DIN99 |
| Light Source | A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84 |
| Observer | 10° (CIE1964), 2° (CIE1931) |
| Wave Length | 400 nm to 700 nm, 10 nm interval |
| Reflectivity | Range 0 % to 200 % Resolution 0.01 % |
| Sensor | CMOS sensor |
| Calibration | Automatic |
| Display Resolution | 0.01 |
| Table Difference | △E x ab ≤ 0.4 |
| Test Speed | 1.0 s |
| Quality Control Software | Polymer Li-ion battery 10000 times full charged |
| Interface | Type C Bluetooth |
| App Platform | Andorid IOS Windows |
| Storage | 8000 group Mass storage for APP |
| Display | 3.5 inch full color capacitive touch screen |
| Geometric | D or 8 1.57 in (40 mm) integrating sphere |
| Caliber | Single Caliber 0.15 in (4 mm) or 0.31 in (8 mm) |
| Size: | 7.12 in x 2.63 in x 2.63 in (18.1 cm x 6.7 cm x 6.7 cm) (without base) |
| N.W or G.W | 11.54 oz or 5.29 oz (330 g or 150 g) |
