Overview

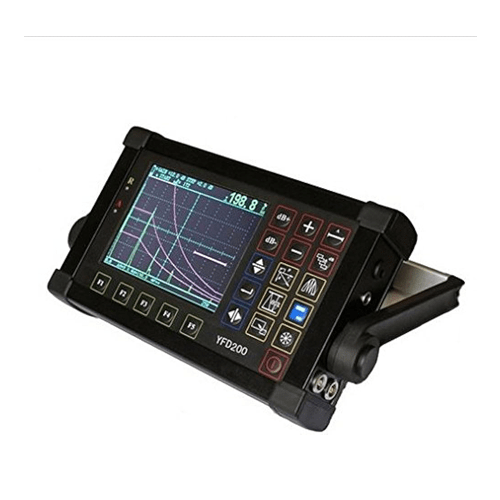

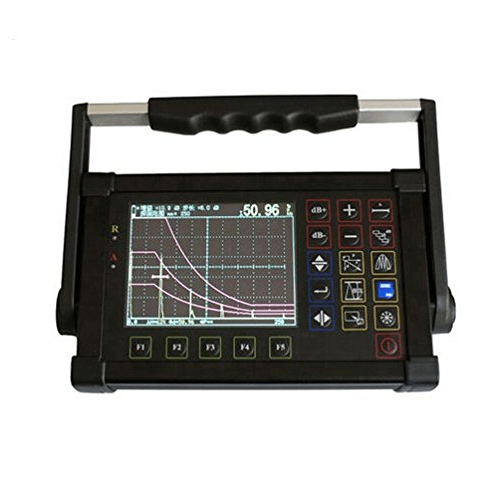

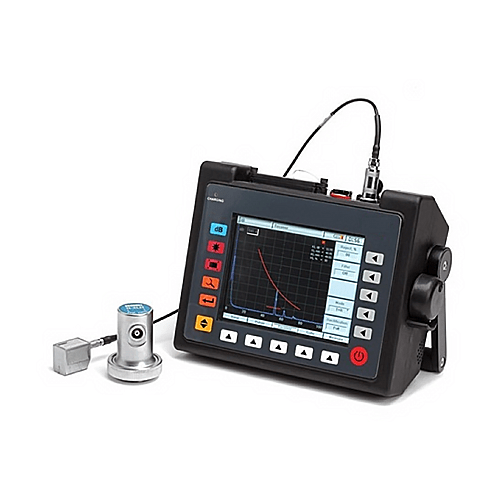

Emissions and Stack portable ultrasonic flaw detector is one of the latest developed hi-tech products. It is suitable for various detection demands, such as forged pieces, welding lines and airplane parts. It represents the following: innovative technology, advanced process, small size, lightweight, powerful functions and easy operation.
Features
- Probe frequency testing function
- Probe angle (K value) and probe echo frequency measuring function
- avoid reverberation signals during flaw detection
- Large capacity lithium battery pack for continuous operation of over 6 hours
- 240 MHz
- Measurement resolution
- display range: 0.2 in
- High brightness color TFT LCD, bringing optimized effect for reading and measurement
- Color differentiation display function for second wave signals, when detecting with an angle probe
- LAN Ethernet port for real-time communication with a PC (Host) and remote control
- Large memory for saving up to 1000 data sets, including wave forms, curves, parameters, detection reports, etc.
Technical Specifications
| Max. sampling rate | 240 MHz |
| Min. display range | 0.2 in (5 mm) |
| Menu language | English |
| Operating frequency range | 0.5 MHz to 15MHz, highlighting |
| Maximum detection range | 236.22 in (6000 mm) |
| Features | Probe frequency testing function |
| display | High brightness color TFT LCD |
| LAN Ethernet port | for real-time |
