Overview

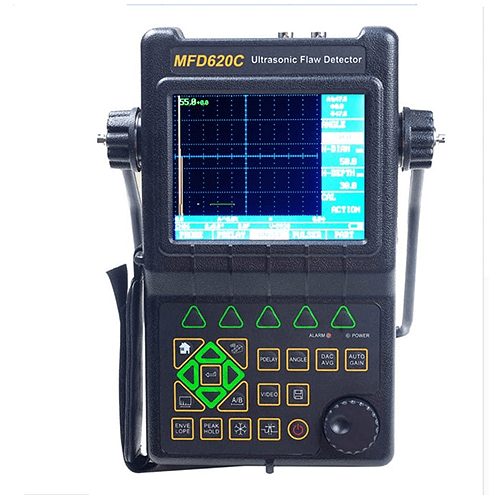

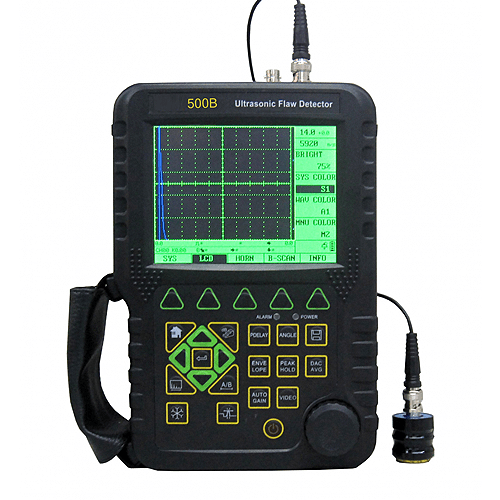

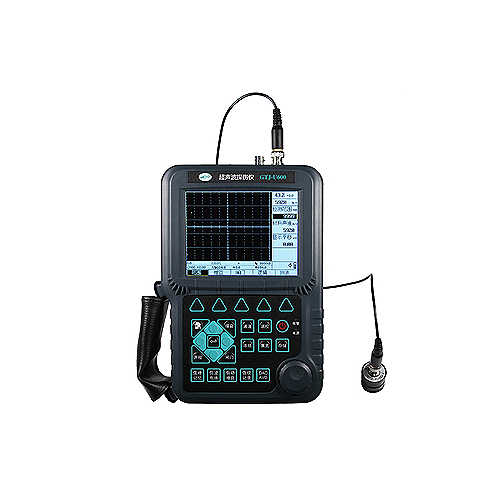

Emissions and Stack portable ultrasonic flaw detector capable of quick no damage accurately detecting the work piece internal various defects cracks with porosity, etc and the product unique design is simple durable, adopting the true color liquid crystal can choose different color scheme. according to environment under the outdoor light, LCD brightness adjustable master slave type menu design, equipped with digital shuttle roller, the operation is convenient, leading technology is widely used in aerospace railway traffic construction steel structure of boiler pressure vessels, and other fields.
Technical Specifications
| Operating Frequency | 0.2 MHz to 20 MHz |
| Sound Speed Range | 1000 m/s to 15000 m/s |
| Decibels | ≥ 36 dB |
| Horizontal Errors | ≤ 0.1% |
| Resolution | > 40 dB (5 P 14) |
| Surplus Sensitivity | > 65 dB |
| Digital Feedback | 0% to 80% |
| Electrical Noise Level | ≤ 8% |
| Pulse Amplitude | 300 V, 500 V, 700 V |
| Probe Damping | 100 Ω, 200 Ω, 400 Ω |
| Filter Band | 0.2 MHz to 20 MHz, Automatic matching according to probe frequency without manual setting |
| Communication Interface | USB 2.0 High speed communication interface |
| Power | 9 V |
| Humility | 20% RH to 95% RH |
| Working Environment | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Detection Range | 0 in to 393.70 in (0 mm to 9999 mm) |
| Size | 10.35 in x 6.69 in x 2.40 in (263 mm x 170 mm x 61 mm) |
