Overview

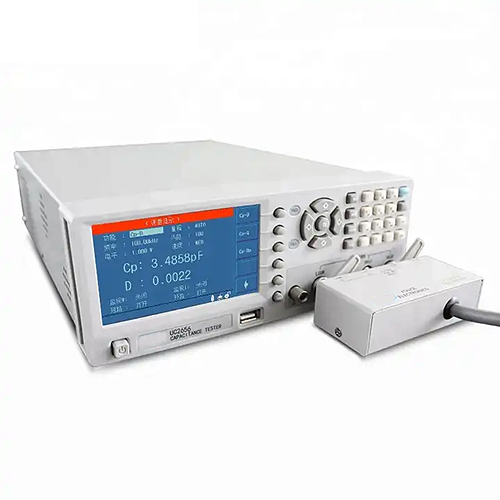

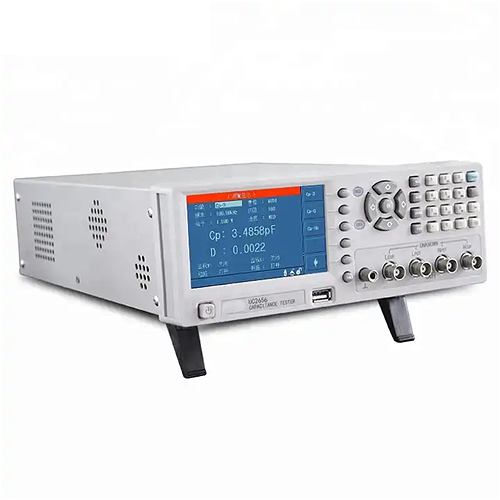

Emissions And Stack Precision Digital Capacitance Meter is a multi-functional component tester for testing all kinds of electronic components. The most popular 4.3 in (10.92 cm) LCD display is used; it is more intuitive and more comfortable for users to read test results. It is an impedance tester with high speed, wide measurement range, and five-bit testing resolution, which can meet the requirements of production line quality assurance, purchase inspection, and laboratory measurement.
Features
- 3 in (10.92 cm) LCD display, more intuitive
- 50 Hz to 100 kHz, 37 typical frequencies
- Different kinds of signal sources output impedance such as 30 Ω, 100 Ω
- Built-in comparator, four files sorting, and file count function
- 100 groups of internal setting files
- Upgraded and updated via USB
- Standard RS232C, HANDLER, USB HOST, optional GPIB
Technical Specifications
| Measurement function | |
| LCR test parameter | |Z|, C, X, R, D, Q, θ |
| Equivalent circuit | Series, parallel |
| Math function | Absolute deviation, percentage deviation |
| Range method | Automatic, hold, and manual selection |
| Trigger mode | Internal, manual, external, bus |
| Measurement speed (≥1 KHz) | Fast speed: 30 t/s at most, medium speed: 11 t/s, slow speed: 3 t/s |
| Average times | 1 to 255 |
| Delay time | 0 s to 60 s, step 1 ms |
| Correction function | Open circuit or short circuit or load |
| Test end configuration | Five ends |
| Display | 5 bits resolution, 4.3 in (10.92 cm) LCD display |
| Test signal | |
| Test signal frequency | 50 Hz to 100 kHz |
| Output impedance | Optional 30 Ω,100 Ω |
| Test signal level | Normal: 0.1 V, 0.3 V, 1 V, accuracy: 10% |
| Display range | |
| |Z|, R, X | 0.01 MΩ to 99.99 MΩ |
| |Y|, G, B | 0.0001 µS to 99.99 S |
| C | 0.0001 pF to 9.99 F |
| L | 0.0001 µH to 999.99 H |
| D | 0.0001 to 9.99 |
| Q | 0.0001 to 99999 |
| θ (DEG) | -179.99º to 179.99º |
| θ (RAD) | -3.14 to 3.14 |
| Others | |
| Comparator function | Four-files sorting function |
| Memory | 100 groups of internal setting files for storage or call, external 500 groups |

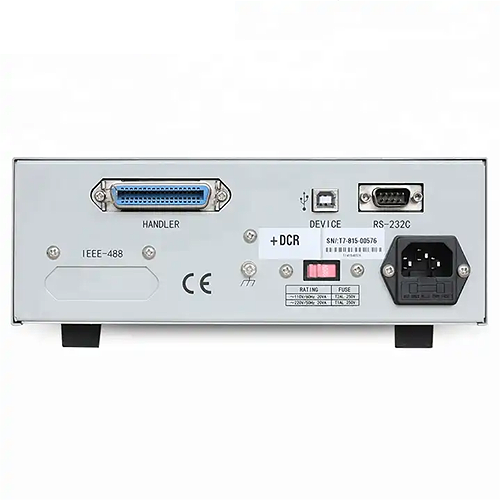

| Interface | Standard RS232C, USB HOST, optional GPIB, HANDLER |
| Operating temperature and humidity | 32 °F to 104 °F (0 °C to 40 °C), 90% RH |
| Voltage | 100 V AC to 120 V AC or 198 V AC to 242 V AC |
| Frequency | 47.5 Hz to 63 Hz |
| Power loss | Less than 30 VA |
| Weight | About 5.51 lb (2.5 kg) |
