Overview

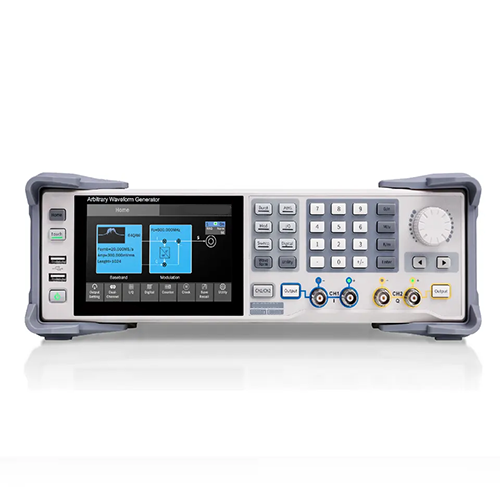

Emissions And Stack waveform generator, with a 500 MHz maximum bandwidth, can integrate multiple waveform generation capabilities, ranging from DC to continuous waves up to 1 GHz, making it suitable for replacing RF signal generators in certain applications. It adopts TrueArb point-by-point arbitrary waveform generation technology, which enables user-adjustable output sample rates from 0.01 Sa/s to 2.5 GSa/s with excellent jitter performance and the generation of I/Q vector signals with a maximum settable bandwidth greater than 500 MHz. Using the benefits of Easy Pulse architecture, a low jitter pulse with a minimum pulse width of 1 ns can be generated.
Features
- 1 GHz maximum bandwidth
- Dual channel differential or single-ended output
- Segment editing or playback function
- 16 bits LVDS or LVTTL digital bus output
- 5 in (12.7 cm) touch screen
Technical Specifications
| Max output frequency | 500 MHz |
| Max sampling rate | 5 GSa/s |
| Vertical resolution | 14-bits |
| Waveform length | 512 Mpts |
| Channels | 2 Differential or Single-ended |
| Screen Display | 5 in (12.7 cm) |
| Bandwidth | 1 GHz |
| Frequency | 0 Hz to 1 GHz |
