Description

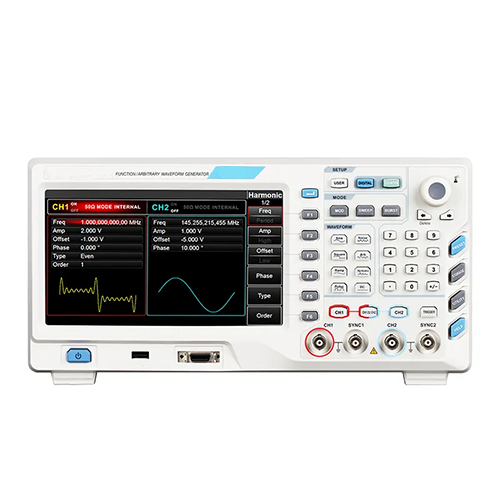

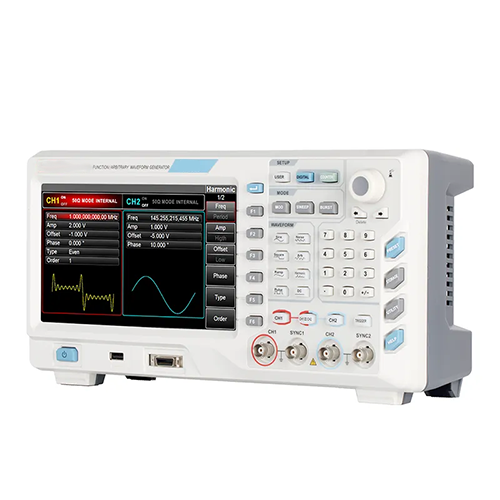

This function generator digital dual channel has bandwidth of 160 MHz, 500 MSa/s sampling rate, vertical resolution of 16 bits, and 1 μHz resolution.
Features
- Rich modulation functions
- Harmonic signal
- Any waveform
- Scanning type: linear, logarithmic
- Unique digital interface
Technical Specifications
| Frequency range | 1 μHz to 40 MHz |
| Resolution | 1 μHz |
| Noise (-3 dB) | 160 MHz bandwidth |
| Harmonic | 1 μHz to 80 MHz |
| Slope | 1 μHz to 4 MHz |
| Square or Pulse | 1 μHz to 50 MHz |
| Sine | 1 μHz to 160 MHz |
| Sampling rate | 500 MS/s |
| Channels | 2 |
| Bandwidth | 160 MHz |
| Length | 8 Mpts to 32 Mpts |
| Vertical resolution | 16 bits |
| Min rise or fall time (typical: 1 Vpp) | Less 5 ns |
| Waveforms | Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary |
| Working modes | Output on or off, continuous, modulation, sweep, burst |
| Modulations | AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM |
