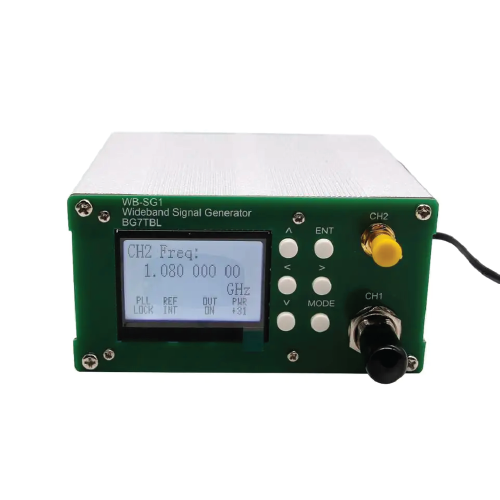

Features
- 1 Hz to 15 GHz wide frequency output
- 10 M to 15 G with amplitude adjustment
- Built in OCXO for external reference
Technical specification
| CH1 Frequency Range | 1 Hz to 200 MHz |
| CH1 Step | 1 Hz to 19.999999 MHz or 1 Hz, 20 MHz to 200 MHz or 10 Hz |
| CH1 Output Amplitude | 3.3 Vpp |
| CH1 Port Type | BNC |
| CH2 Frequency Range | 10 MHz to 15 GHz |
| CH2 Step | 10 Hz |
| CH2 Reference Output Power | + 5 dBm to -7 dBm at 1 G |
| CH2 Output Impedance | 50 OHM |
| CH2 Port Type | SMA |
| Internal Reference Frequency | 10 MHz |
| Internal Reference Type | OCXO |
| Internal Reference Aging | 0.5 Hz or year |
| 10M Reference Output Port Power | 5 dBm |
| External Reference Input Power Range | 0 dBm to + 20 dBm |
| Operation Modes | CH 1 dot frequency mode |
| MODE | Switch operating modes |
| ENT | Input data |
| 4 buttons | Left or right or up or down |
| CH1 | Output of channel 1 |
| CH2 | Output of channel 2 |
| 10MHz REF INPUT | External 10 M reference input |
| 10MHz REF OUTPUT | 10 M reference output |
| USB | USB port |
| STD ADJ | Internal OCXO frequency trimming |
| ON/OFF | Power switch |
| weight | 1.65 lb (750 g) |
