Overview

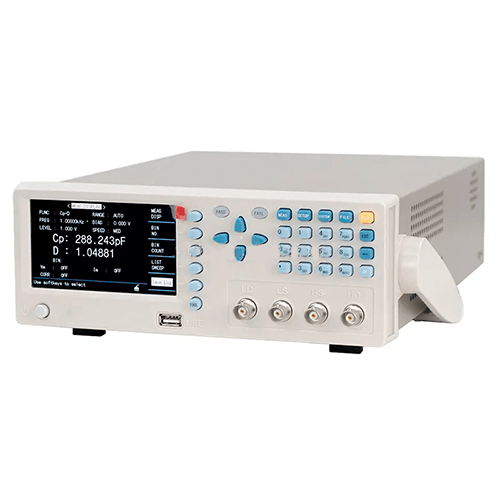

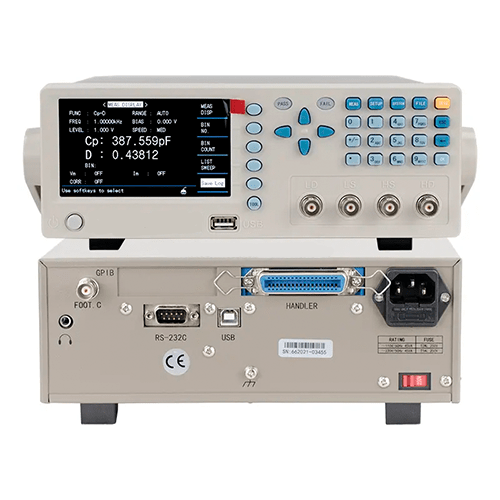

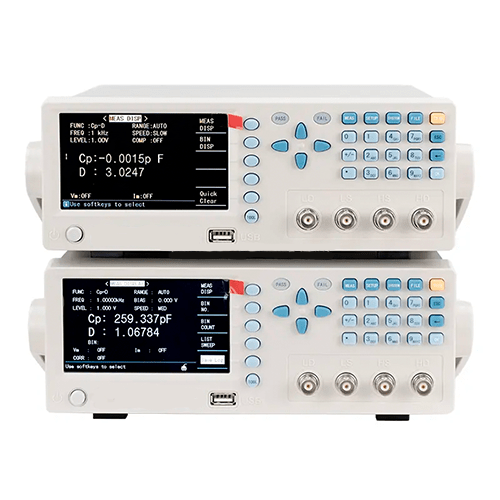

Emissions And Stack precision LCR bridge meters digital is compact bench-type professional LCR meters with 4.3 in (109.22 mm) TFT LCD displays. These digital devices test frequencies ranging from 100 kHz, 200 kHz, 300 kHz, and 500 kHz. The basic test accuracy is 0.05%. These products can be used for testing passive components, such as incoming inspections, the production, and sorting of passive components.
Features
- 32-bit core processor

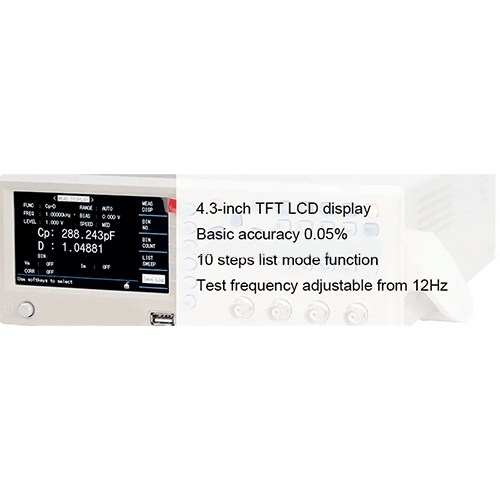

- 5-digit 4.3 in (109.22 mm) TFT LCD display
- 4 signal source output impedance: 30Ω, 100Ω, 10 or 100 or 10CC
- List mode function, 10 steps
- 100 sets memories for internal storage or save
- 500 memories for U disk storage or save, supports FAT16 and FAT32 files
- Save the last parameter settings before power off Standard interface: RS-232, HANDLER, USB HOST, USB Device, FOOT C, Earphone
Technical specification
| Test Parameter | | Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR |
| Test Signal Frequency | 12 Hz to 100 kHz |
| Min Frequency Step | 0.1 mHz |
| Basic Accuracy | 0.05% |
| Equivalent Circuit | Series, Parallel |
| Mathematical Function | Absolute Deviation and Percentage Deviation |
| Range Mode | Auto, Hold, Manual Selection |
| Trigger Mode | Internal, Manual, External, BUS |
| Measurement Speed | Fast: max 75, Medium: 12, Slow: 3 (times/second) (≥ 1 kHz) |
| Average Times | 1 to 255 |
| Delay Time | 0 to 60 s, step 1 ms |
| Calibration Function | Open circuit, short circuit, Load |
| Display Mode | Direct, Δ, Δ%, V/I (monitoring test voltage and current) |
| Display | 6-digit 4.3 in (109.22 mm) LCD display (480 pixels x 272 pixels) RBG5 |
| List Mode | 10 steps |
| Output Impedance | 30 Ω, 100 Ω, 10/100, 10/CC |
| Test Level and Accuracy | Normal: 5 mV to 2 Vrms, accuracy 10%, Min step 1 mV, Max. test current 20 mA Constant level: 5 mV to 1 Vrms, accuracy 6%, Min step 1 mV |
| DC Bias Source | 0 V, 1.5 V, 2 V Accuracy 1% |
| |Z|, R, X | 0.01 mΩ to 99.9999 MΩ |
| DCR | 0.001 mΩ to 99.9999 MΩ |
| |Y|, G, B | 0.00001µS to 99.9999 S |
| C | 0.00001 pF to 9.99999 F |
| L | 0.00001 µH to 99.9999 kH |
| D | 0.00001 to 9.99999 |
| Q | 0.00001 to 99999.9 |
| Θ (DEG) | -179.999º to 179.999º |
| Θ (RAD) | -3.14159 to 3.14159 |
| Δ% | -999.999% to 999.999% |
| Comparator | 10 bins (9 pass 1 fail) and 1 AUX bin |
| Memory | 100 sets memories for internal parameter settings storage or save 500 sets for U disk parameter settings storage or save |

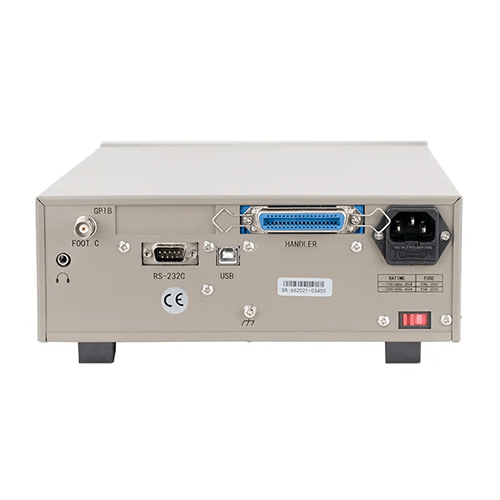

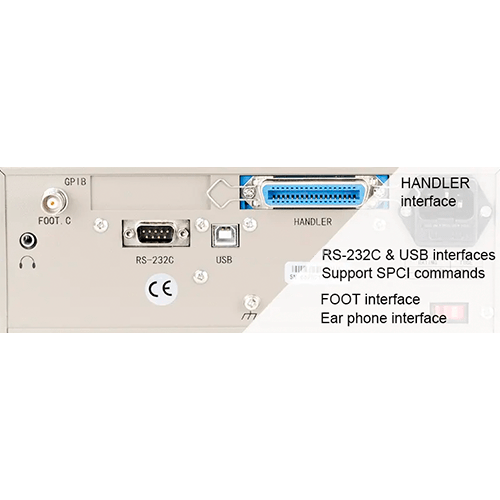

| Standard Interface | Standard: RS232, USB HOST, HANDLER, EARPHONE, PEDAL interfaces |
| Optional Interface | GPIB |
| Operating Environment | 32 °F to 104 °F (0 °C to 40 °C), ≤ 80% RH |
| Power Source | 110 V or 220 V ± 10%, 47 Hz to 63 Hz |
| Power Consumption | ≤ 50 VA |
| Accessories | 4- terminal Kelvin test clip leads, RS232 cable, power cord, operation manual |
| Dimensions | 10.43 in x 3.93 in x 13.38 in (265 mm x 100 mm x 340 mm) |
| Weight | 9.92 lb (approx. 4.5 kg) |
