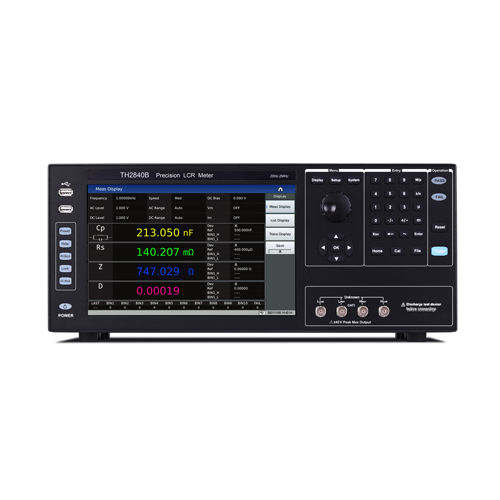

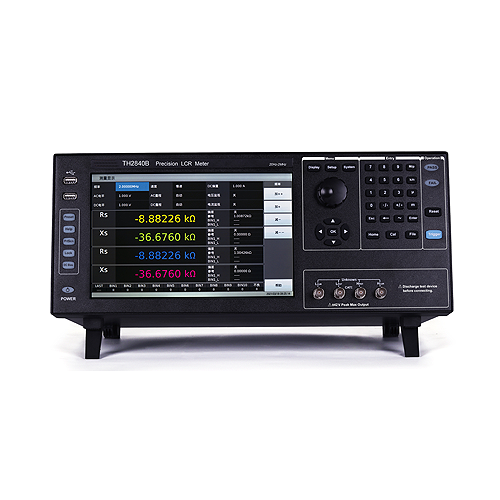

Features
- Test frequency: 10 Hz to 130 MHz
- Utilizing automatic balance bridge tech in a four-terminal pair test
- High stability and consistency
- High speed: the fastest test speed up to 5 ms
- High resolution: 10.1 in (25.6 cm) capacitive touch screen
- Three test methods: point test, list scan, and graph scan
- 1601 point multi-parameter list scanning function
- Four-parameter measurement
- 4-channel graphic scanning function
- 10 grades sorting in LCR mode
- Graphic scanning mode, each curve is sorted individually
- Support SCPI instruction set
Technical Specifications
| Display | 10.1 in (25.6 cm) TFT LCD Display 1280 × RGB × 800, Touch Screen |
| Power Consumption | Max 150 VA |
| Input Voltage | 100 V AC to 120 V AC or 198 V AC to 242 VAC Option, 47 Hz to 63 Hz |

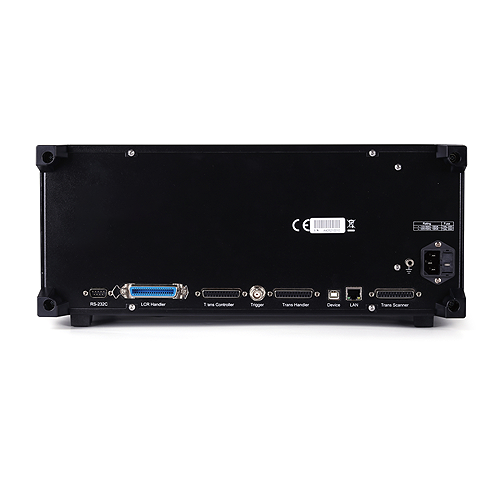

| Interface | RS232C, USB HOST, USB DEVICE, LAN, GPIB, HANDLER, VGA |
| Sorting | 10 levels of sorting in LCR mode; each curve in scan mode is sorted individual |
| Equivalent Circuit Analysis | 3 element model: 4, 4 element model: 3 |
| Parameter (Graphic Scan) | Frequency, ACV, ACI, DCV, DCI |
| Types (Graphic Scan) | Logarithmic, linear, frequency segmentation |
| Number Of Channels (Graphic Scan) | 4 |
| Number Of Curves (Graphic Scan) | 4 per channel |
| Split Screen (Graphic Scan) | 14 (channel and curve) |
| AC Parameter | Cp or Cs, Lp or Ls, Rp or Rs, |Z|, |Y|, R, X, G, B, θ, D, Q, VAC, IAC |
| DC Parameter | VDC, IDC, DCR |
| Range (Test Frequency) | 10 Hz to 130 MHz |
| Resolution (Test Frequency) | 1 MHz |
| Relative Frequency Tolerance (Test Frequency) | Less than 0.0007% |
| AC Voltage (Test Level) | 5 mV to 2 Vrms |
| Resolution (Test Level) | 1 mV |
| AC Current (Test Level) | 50 μA to 20 mArms |
| Resolution (Test Level) | 10 μA |
| Voltage (DC Bias) | 0 V to 40 V |
| Resolution (DC Bias) | 1 mV |
| Current (DC Bias) | 0 mA to 100 mA |
| Resolution (DC Bias) | 40 μA |
| Test Terminal Configuration | Four terminal pair |
| Output Impedance | 25 Ω or 100 Ω |
| Typical Test Time (Speed) | Five Shift: 1 (Fast) to 5 (Accuracy) 1: 2.5 ms 2: 10 ms 3: 40 ms 4: 80 ms 5: 400 ms (Does not include the arithmetic average of the communication time, each frequency test speed will be slightly different) |
| Max Accuracy | 1 kHz: 0.08% 1 MHz: 0.08%
2 MHz: 0.5% 10 MHz: 1% 130 MHz: 5.0% |
| Measurement | 16.8 in x 8.6 in x 12.7 in (428 mm x 220 mm x 325 mm) |
