Overview

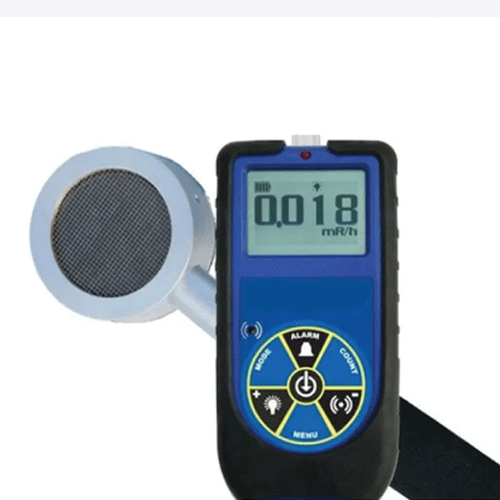

Emissions and Stack Radiation Alert Monitor is an energy compensated radiation detector that measures gamma and X-rays. Ideal for most applications requiring energy compensated detectors. Users can choose from readouts in CPM, CPS, µSv/hr, mR/hr, or cumulative counts. It has a red count light, beeps when each count is detected, and includes an adjustable timer and optional alarm.
Technical Specifications
| display screen | Graphical LCD with backlight |
| temperature range | 14 °F to 122 °F (-10 °C to 50 °C) |
| power requirements | USB power or two (2) AA alkaline batteries |
| audio indicator | Sound for each count |
| counting lights | On each count, the red LED blinks. |
| Operating range | 001 (1µR) to 1000 mR/hr 0.01 µSv/hr to 10000 µSv/hr 0 CPM to 450,000 CPM 0 CPS to 7500 CPS 1 counts to 9,999,000 counts |
| Precision | ± 15% |
| Energy sensitivity | 450 CPM/mR/hr |
| Range of optional alarm | 001 mR/hr to 1000 mR/hr and 1 CPM to 450,000 CPM .The buzzer sounds an alarm. Adjustable alarm levels for mR / hr / CPM and µSv / hr / CPS. |
| Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| size | 5.51 in x 2.68 in x 1.30 in (140 mm x 68 mm x 33 mm) |
| Weight | 0.45 lb (204 g) |
