Overview

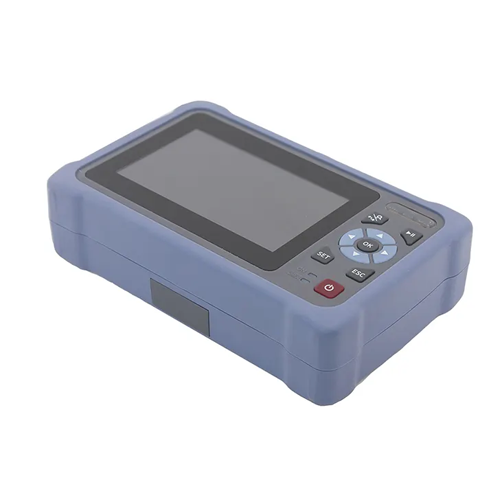

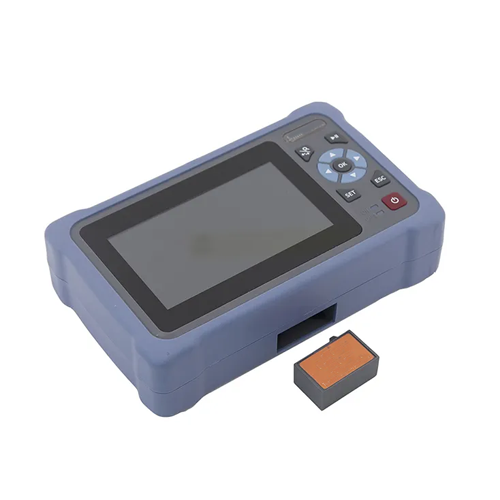

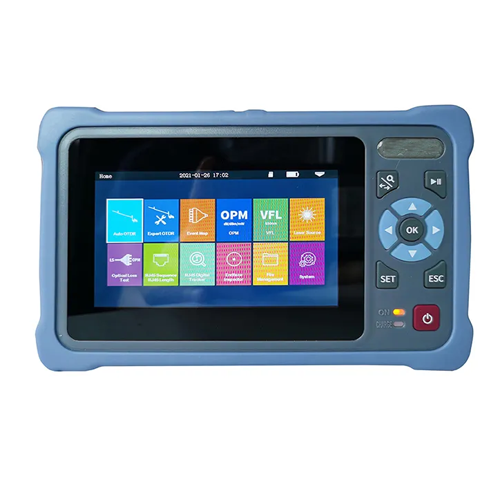

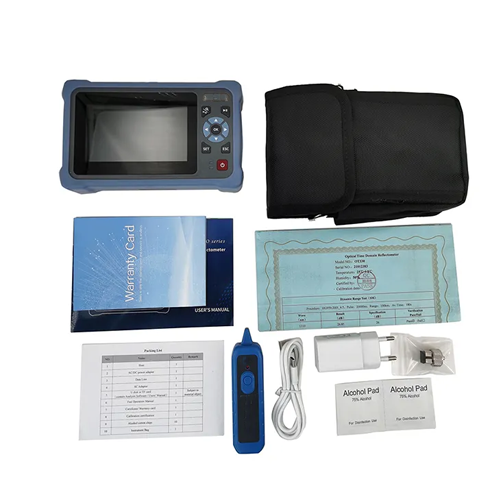

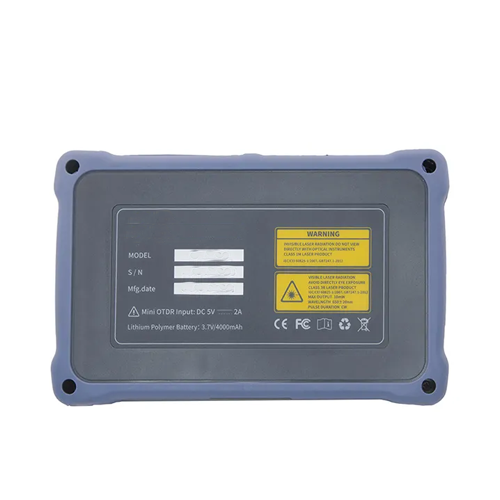

Emissions And Stack Reflectometer Touch Screen Fibre Optica OTDR Touch screen type OTDR optical time domain reflectometer 62.13 mi (100 km) fiber length breakpoint inspection optical power red light integrated stable light source network cable test network cable length measurement line hunting 12 functions in one.
Features
- 3-inch multi-touch capacitive screen
- Support new gesture zoom function
- Screen screenshot intelligent multi-function
- Twelve-in-one functional module: automatic otdr
- Expert otdr
- Event map
- Optical power meter
- Visible red light
- Adjustable light source
- Optical loss test
- Rj45 network cable to line
- Rj45 network cable distance measurement
- Rj45 network cable line hunting
- Flashlight
- End detection (optional) automatic otdr
- No complicated settings
- One-key test expert otdr, professional measurement mode, simultaneous display of curve
- List and map view event blind zone 8.20 ft (2.5 m)
- Attenuation blind zone 26.84 ft (8 m)
- Measurement ranges up to 62.13 mi (100 km) support optical test with less than -5 dBm optical signal
- High isolation bilateral filtering technology
- Support automatic save
- Sor file format
- 8 G storage capacity
- Can store 200,000 items support type-c charging interface
- 4000 mAh polymer battery
- Battery life is more than 12 hrs
Technical Specifications
| Fiber Type | G.652 |
| Dynamic Range | 26 dB or 24 dB |
| Event Dead Zone | 8.20 ft (2.5 m) |
| Attenuation Dead Zone | 26.84 ft (8 m) |
| Measurement Range | 0.31 mi (500 m), 0.62 mi (1 km), 1.2 mi (2 km), 2.48 mi (4 km), 4.97 mi (8 km), 9.94 mi (16 km), 19.88 mi (31 km), 39.76 mi x64 km), 62.13 mi (100 km) |
| Pulse Width | 3 ns to 20 us |
| Range-Measuring Accuracy | ± (3.28 ft or 1 m plus sampling interval s.005 % × test distance) |
| Linearity | ± 0.05 dB |
| Sample Points | 16 k to 128 k |
| Sample Resolution | 0.16 ft to 26.24 ft (0.05 m to 8 m) |
| Reflection Accuracy | ± 3 dB |
| Data Storage | 8 G |
| Laser safety class | Class 2 |
| File format | SOR |
| Optical connector | FC or UPC (interchangeable SC, ST); Option SC/APC |
| Light source | |
| Laser type | FP-LD |
| Output wavelength | 1310 nm or 1550 nm ± 20 nm |
| Output power(adjustable) | (-2 dBm ± to –10 dBm) ± 2 dB |
| Frequency | 270 Hz or 330 Hz or 1 kHz or 2 kHz |
| Stability | CW, ± 0.2 dB or 15 min (post-15 min test after power-on warm-up) |
| Optical connector | FC or UPC (Interchangeable SC, ST) |
| VFL | |
| Working wavelength | 650 nm ± 20 nm |
| Output Power | ≥ 10 mW |
| Operating mode | CW or 1 Hz or 2 Hz |
| Optical connector all-in-one | FC or SC or ST |
