Overview

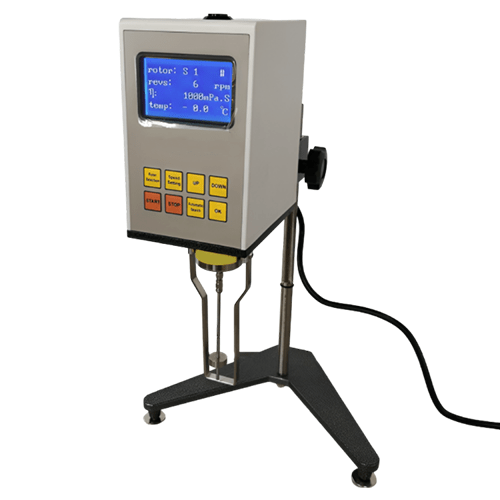

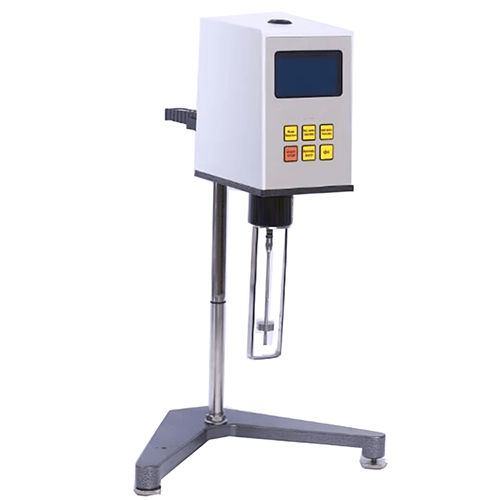

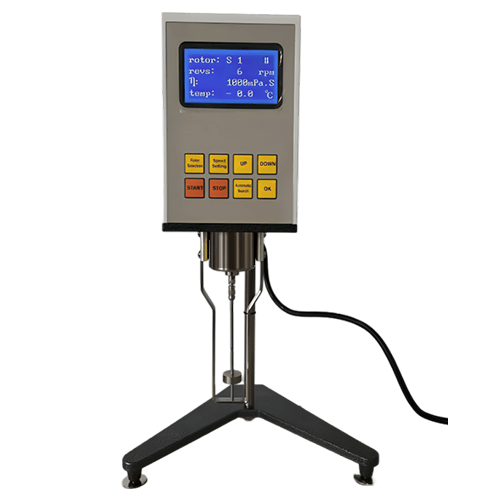

Emissions And Stack Rotational Digital Viscometer is a new upgrading product of our rotational viscometer. The adoption of advanced mechanical design technology, manufacturing processes, and microcomputer control technology guarantees accurate data collection. ultra-bright LCD with blue backlight guarantees clear data display. With the microcomputer technology, it is easier to set the measuring span (rotor number and rotating speed), take the digital process of the data measured by the sensor, and display the rotor number, rotating speed, viscosity value of the tested liquid, and its full-scale percentage on the screen. Besides, its automatic switch is set for free selection of proper rotating speed or rotor number.
Technical Specifications
| Specifications | Details |
| Measurement Range | 1 to 2 ×105 mPa.s |
| Rotor Specification | 1,2, 3, 4 # |
| Rotating Speed of Rotor | 6 rpm, 12 rpm, 30 rpm, 60 rpm |
| Interface | No |
| Automatic Switch | Free selection of proper rotating speed or rotor number |
| Stable Cursor | Strip-type cursor fully charged displayed when reading stable |
| Measurement Tolerance | ± 2% (Newtonian liquid) |
| Power | AC 220V ± 10% 50 Hz ± 10% |
| Temperature | 41 °F to 95 °F (5 °C to 35 °C) |
| Working Condition | Relative humidity no more than 80% |
| Outline Dimension | 14.56 in × 12.79 in × 11.02 in (370 mm × 325 mm × 280 mm) |
| Packing | 15.74 in × 14.17 in × 12.20 in (400 mm × 360 mm × 310 mm) |
| Net Weight | 14.99 lb (6.8 kg) |
| Gross Weight | 19.84 lb (9 kg) |
