Features
- Hot Pluggable
- Low power consumption
- enables higher port densities and greater bandwidth
- All-metal housing for superior EMI performance
- Cost effective SFP+ solution

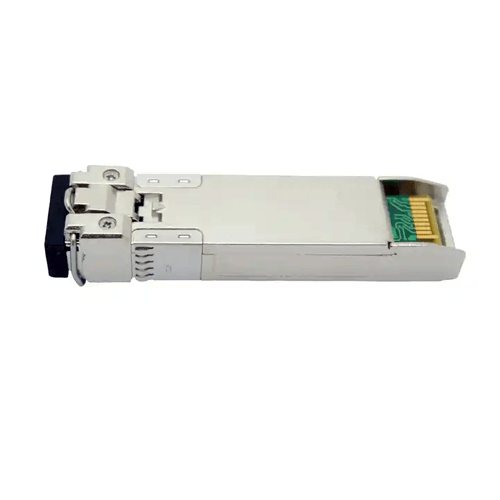

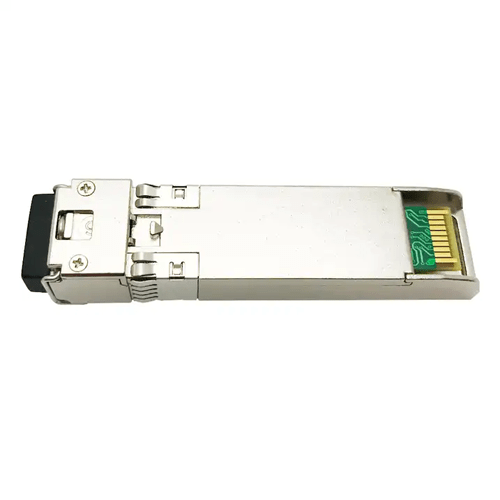

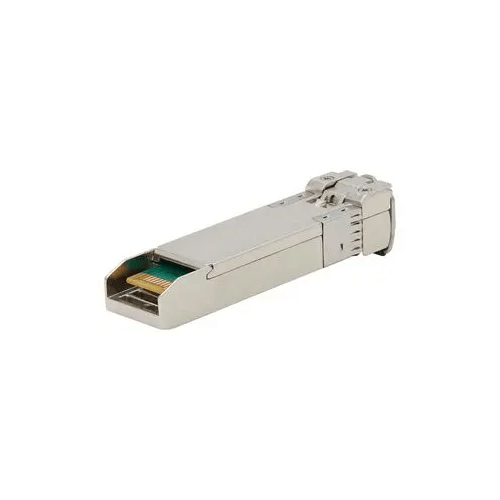

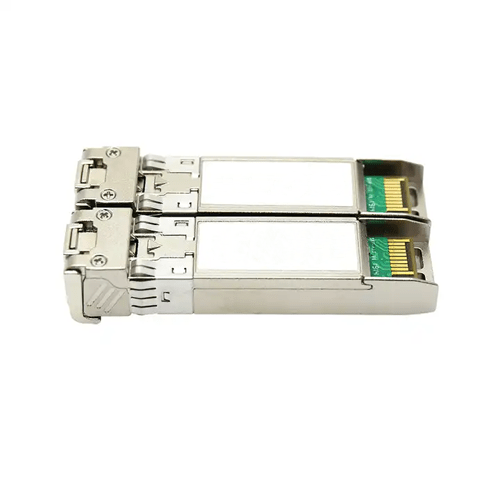

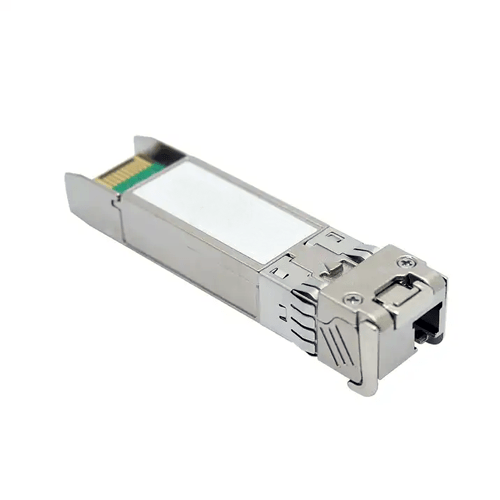

- Fiber Bi-Directional SFP+ Optical Transceiver
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Up to 10.7Gbps Data Links
- 1490/1550nm DFB LD Transmitter
- 1490/1550nm PIN Receiver
- Operating case temperature: 0 to 70 °C
Technical Specifications
| Network | 4 g, 3 g |
| Data Rate | 10 Gb / s |
| Transmitter | EML |
| Receiver | APD |
| Output Power | 2 to 6 dB m |
| Sensitivity | ≤-23 dB m |
| Wavelength | 1490 nm or 1550 nm |
| Distance | 49.709 mi (80 km) |
