Overview

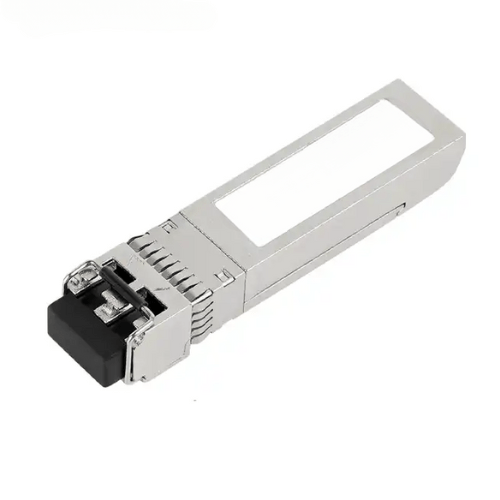

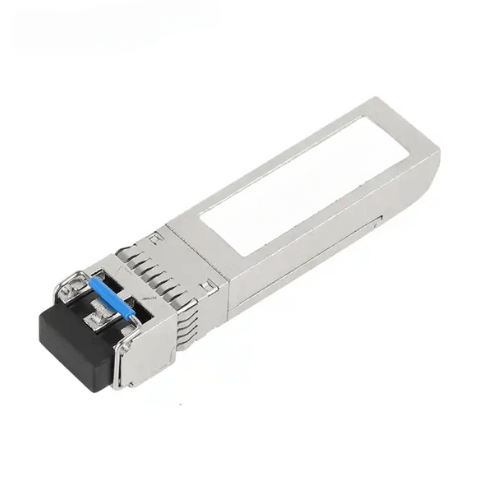

Emissions And Stack SFP optical transceiver supports up to 400 m link lengths over OM4 MMF via an LC duplex connector. This transceiver is compliant with SFF – 8431, SFF -8432 and IEEE 802.3 ae standards. Digital diagnostics monitoring is available via a 2 – wire serial interface, as specified in SFF – 8472. Featuring low power consumption and high speed, this 10 G SFP + transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Features
- Max Power Consumption 1 W
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Hot Pluggable SFP + MSA Compliant
- WD BOX – Support Real-time Configuration
- Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
- Optical Interoperability with 10 G BASE XENPAK, X2, and XFP Interfaces on the Same Link
- Class 1 FDA Laser Safety and RoHS Compliant
- IEEE 802.3 ae Compliant
Technical Specifications
| Wavelength | 850 nm |
| TX Power | -7.3 dBm to -1 dBm |
| Power budget | 3.8 dB |
| Power consumption | <1 W |
| Max Data Rate | 10.3 Gbps |
| Max Cable Distance | 300 m |
| Receiver Sensitivity | <-11.1 dBm |
| Receiver Overload | -4.5 dBm |
| Extinction Ratio | >3 dB |
| Temperature | 32 ºF to 158 °F (0 ºC to 70 °C) |
