Overview

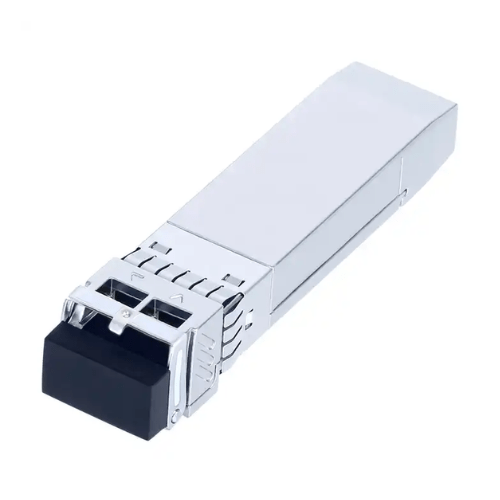

Emissions And Stack SFP+ tunable optical transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.3 Gb/s. The module complies with SFF-8431, SFF-8432, SFF-8690 and SFF 8472. It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET or SDH, IEEE DWDM 10GBASE-ZR for 49.71 mi (80 km) reach (Ethernet), and DWDM 10 GFC for 49.71 mi (80 km) reach (Fiber Channel) applications. The transceiver contains a C-band-tunable integrated Mach-Zehnder (MZ) laser, enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side, the 10 Gbps data stream is recovered from an APD or trans-impedance amplifier and passed to an output driver. This module features a hot-pluggable electrical interface.
Features
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter and APD receiver
- 50 GHz ITU channel spacing with integrated wavelength locker
- Up to 49.71 mi (80 km) for SMF transmission
- Compliant with SFP+ MSA with duplex LC receptacle
- Compliant with SFF-8472 and SFF-8690
- Compatible with RoHS
- Single 3.3 V power supply
- Real Time Digital Diagnostic Monitoring
- Operating case temperature 23 ℉ to 167 ℉ (-5 °C to 75 °C) (Standard)
Technical Specifications
| Form Factor | SFP+ |
| Wavelength | Tunable DWDM, 1563.86 nm to 1528.77 nm |
| Frequency | 191.7 THz to 196.1 THz |
| Network | Wired LAN, TCP, POE, 4G |
| Max Distance | 49.71 mi (80 km) |
| Transmitter Power | -1 dBm to 3 dBm |
| Receiver Sensitivity | <-23 dBm |
| Connector | double LC |
| Application | DWDM 10 G BASE-ZR, ZW 10G Ethernet DWDM 49.71 MI (80 KM) 10 G Fiber ChannelDWDM SONET OC-192 & SDH STM-64 |
| Data Rate | 10 Gbps |
| Cable Type | SMF |
| Optical Components | C-band tunable transmitter, APD |
| Extinction ratio | >8.2 dB |
| Receiver Overload | >-7 dBm |
| Digital Diagnostic Monitoring | Yes |
| Compliance | RoHS |
| Environment | Operating 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) |
| Weight | 0.33 lb (0.15 kg) |
