Overview

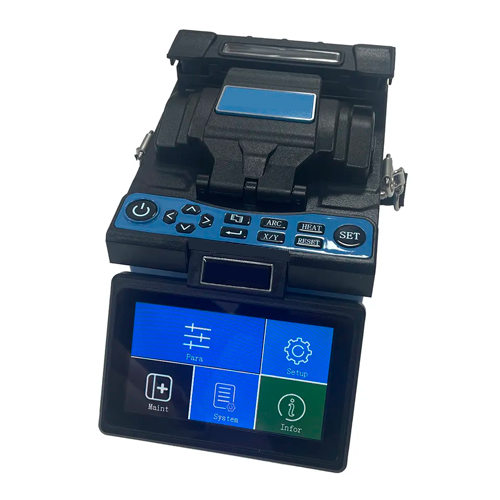

Emissions And Stack Small Size fiber Optic Fusion Splicer High Precision Optical Fusion Splicer, with high-performance price ratio, is the main product of our company. With a smart appearance and reliable quality, it is a special design for installing, operating, and maintaining optical fibre, specially designed as a precision, durable, convenient optical fibre construction instrument. It is used in the construction, inspection, and maintenance of fibre cables.
Features
- Support 9 languages
- Used for FTTH and ordinary fibre project
- Core-to-core alignment by PAS technology
- 8 s splicing time and 30 sec heat time
- 300 X or Y view, 200 X and Y view
- 5-inch digital high-quality LCD screen
- Observe X and Y view at same time
- Three in one fixture, cable indoor and pig tail
- Built in large capacity lithium battery of 200 times splicing
- Small size and light weight
- With dual heating groove
Technical Specifications
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS) |
| Return Loss | > 60 dB |
| Splicing Mode | Manual, Half Auto, auto |
| Fibre Alignment | Core to Core Alignment by PAS technology |
| Applicable fiber | Cable indoor and 0.009 in (0.25 mm), 0.03 in (0.9 mm) fibre, SC fast connector |
| Splicing Time | ≤ 9 s |
| Heat Time | ≤ 30 s |
| Cleaved Length | 0.3 in to 0.6 in (8 mm to 16mm) |
| Fibre Image or Magnification | 300 or 200 |
| View Display | 5 in (12.7 cm) digital high-quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 2.3 in (60 mm), 1.5 in (40 mm) and serials heat Shrinkable Sleeve |
| Battery Capacity | 200 cycles splicing and heating, 3 hrs charging time (splicing and charging at same time) |
| Battery Life | Cycling charge 300 to 500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤ 20 W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Power supply | Built-in lithium battery 5200 mAh 11.1 V; external adapter, input: AC 100 V to 240 V, output: DC 13.5 V or 4.5 A |
| Operating Condition | Temperature: 14 °F to 140 °F (-10 °C to 60 ℃), Humidity: 0 % to 95 % RH |
| Weight (including battery) | 4.6 lb (2.1 kg) |
| Dimension | 5.3 in x 6.2 in x 6.1 in (135 mm × 158 mm × 155 mm) |
