Overview

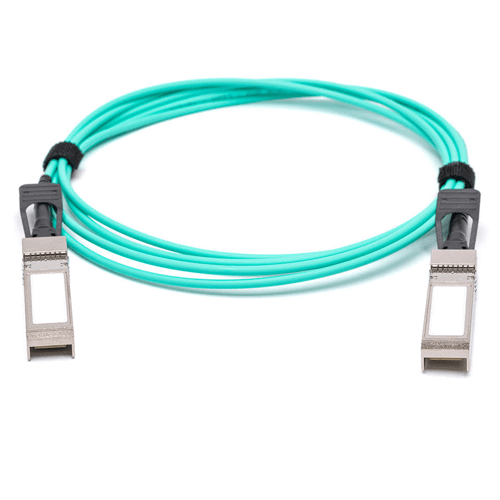

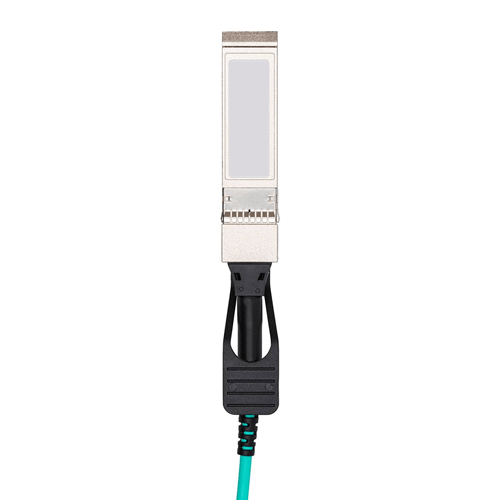

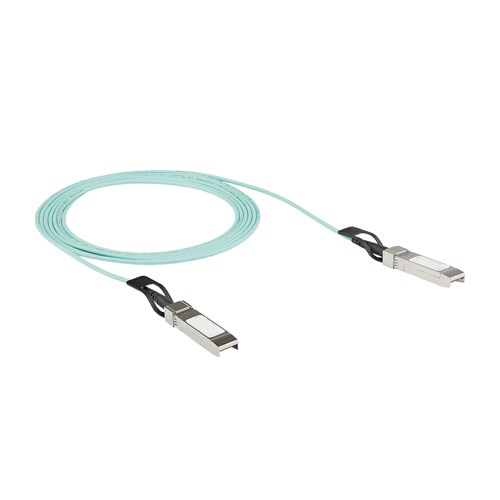

Emissions And Stack speed wave optical cable is directly attached to fiber assemblies. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. This is a single-Channel, Pluggable, Fiber-Optic SFP-28 for 25 Gigabit Ethernet and InfiniBand EDR Applications.
Features
- Hot-pluggable SFP-28 form factor
- Supports 25 Gbps data rate
- 850 nm VCSEL laser and PIN photodetector
- Internal CDR on both Transmitter and Receiver channel
- Power dissipation <1 W
- Digital diagnostics functions are available via the I2C interface
- RoHS-6 compliant
Technical Specifications
| Data Rate (typical) | 25.78 Gbps |
| Maximum link length | 0.05 mi (80.47 m) on OM3 MMF0.06 mi (100 m) on OM4 MMF |
| TX Output Power | -8.4 dBm to 2.4 dBm |
| RX Sensitivity | -10 dBm |
| Voltage Supply (typical) | Single 3.3 V |
| Power dissipation | <1 W |
| Low or High Case Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
