Overview

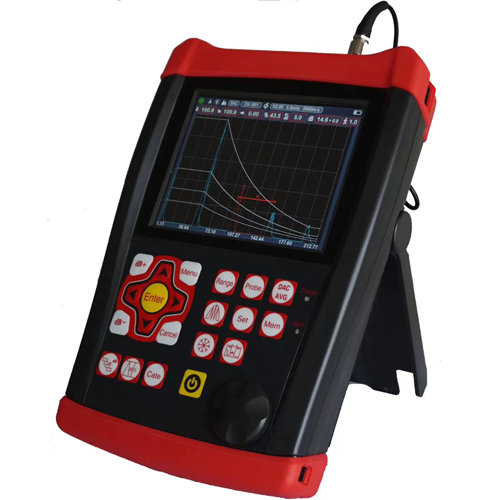

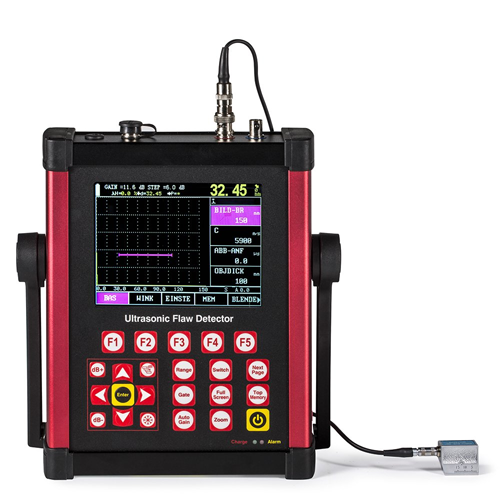

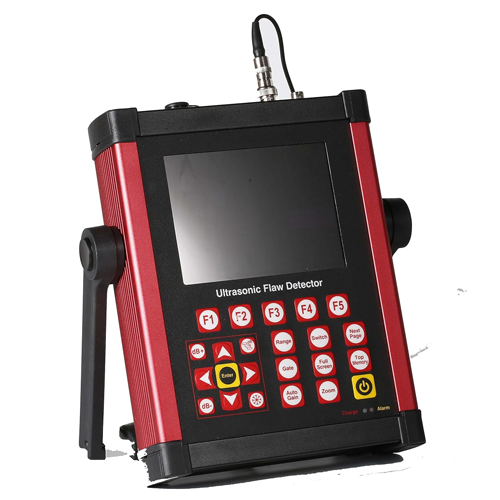

Emissions and Stack standard ultrasonic flaw detector used for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the workpiece, such as cracks, welds, blowhole, etc. It’s widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.
Features
- IP65 standard, with the durable metal shell (oil-proof, water-proof and dust-proof)
- PC software is available for data analysis, management and reports printing
- Probe automatic calibration
- DAC and AVG are automatically formed, and can be corrected and compensated
- Freely switch to four kinds of standards (depth D, level P, distance S, amplitude H)
- Functions such as Auto-gain and peak memory improve detection efficiency
- Automatically calculate the φ value equivalent defects
- 13 built-in testing standards are available
- Storage: 500 to 1000 pieces of A-scan images and data
- Power supply: rechargeable Li-ion battery, standby time more than 15hours
- The width and intensity of launch pulse are adjustable
- With measuring video function
Technical Specifications
| Power | Electronic |
| Operating Frequency | 0.5 MHz to 20 MHz |
| Scan Range | 0 in to 236.2 in (0 mm to 6000 mm) |
| Velocity Range | 1000 m/s to 15000 m/s |
| Vertical linearity error | ≤3% |
| Dynamic Range | ≥32 dB |
| Horizontal linearity error | ≤0.2% |
| Measuring channel | 100 |
| Storage | 500 |
| PC Connection | Yes |
| Weight | 4.07 lb (1.85 kg) |
