Emissions And Stack Storage Logic Analyzer

This Storage Logic Analyzer has Bandwidth of 200 MHz, rise time of ≤1.75 ns, filter of 20 MHz, digital channel of 2, and memory depth of 280 Mpts.

SKU: EMSPELA-230 Category:

Features

  • Segmented Memory
  • Channel Label
  • Normal
  • Super Memory Depth
  • Ultra-high Waveform Capture Rate
  • Bus Decoding and Analysis
  • 31 Types of Auto Measurements
  • Screenshot inverse and Timestamp





Technical Specification

Bandwidth 200 MHz
Digital Channel 2
Rise Time (Single Channel) ≤1.75 ns
Maximum Waveform Capture Rate 130,000 wfm or s (Regular mode), 270,000 wfm or s (Segmented memory mode)
Memory Depth 280 Mpts (single channel)
Real-time Sampling Rate 2 GSa/S
Filter 20 MHz, High pass, Low pass
I/O Port Wi-Fi, LAN, HDMI, USB Host, USB Device, Trigger Out
Display 8 in (20.3 cm), TFL LCD, 800 pixels x 600 pixels, 14 x 10 grids

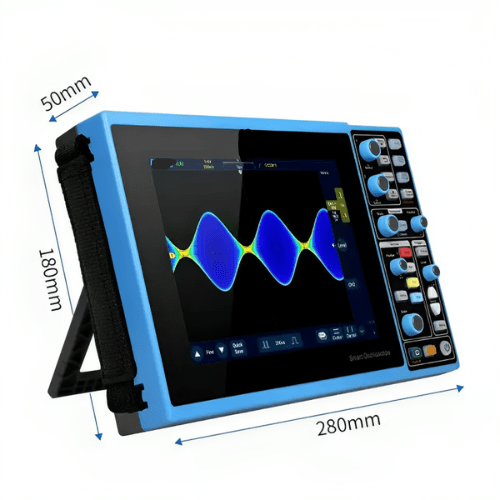

Dimension 3.14 in x 7.08 in x 1.9 in (280 mm x 180 mm x 50 mm)
Weight 3.6 lb (1.65 kg)
