Overview

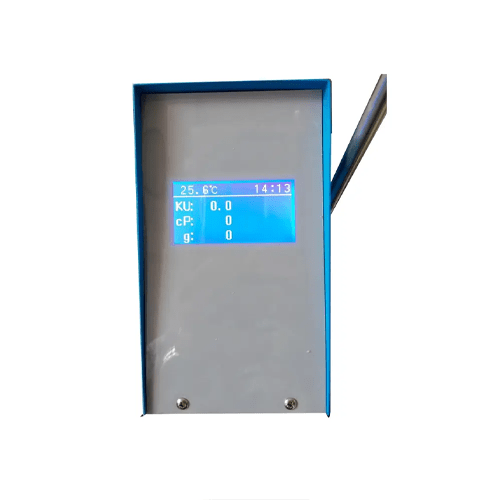

Emissions And Stack Stormer Benchtop Viscometer is controlled by a microcomputer. The mixing blade is driven by a special constant-speed motor to rotate at the speed of 200R / min. The resistance moment of the mixing blade rotating in the measured sample is converted by the computer into a logarithmic function of the load required to generate the speed of 200 R / min in Ku (Krebs Krebs) unit (KU), which is generally used to mark the viscosity for brush coating and roll coating. It is used to measure the viscosity of paints and other coatings marked with Ku value. The load grams, Ku value, CP value, and room temperature of the tested sample are displayed simultaneously on the LCD screen.
Technical Specifications
| Supply Voltage | 220 V 50 Hz |
| Blade Size | 2.13 in x 0.31 in x 0.03 in (54 mm x 7.9 mm x 0.8 mm) |
| Container Size | 3.35 in x 3.35 in (85 mm x 85 mm) |
| Measuring Range | 40.2 KU to 141.0 KU, 32 g to 1099 g and 27 cp to 5250 cp |
| Accuracy | 2% of full scale range |
| Repeatability | 1% of full scale range |
| Rotor Speed | 200 r/min ± 0.5 r/min |
| Overall Dimension | 7.09 in x 8.26 in x 18.5 in (180 mm x 210 mm x 470 mm) |
| Machine Weight | 22 lb (10 kg) |
