Features
- Support ITU-T G.984.2 GPON OLT C+++ application
- Single fiber bidi data links with symmetric 2.488 Gbps Tx and 1.244 Gbps Rx
- 1490 nm continuous-mode transmitter with DFB LD
- 1310 nm burst-mode receiver with APD-TIA
- 2 – wire interface for integrated digital diagnostic Monitoring
- Receiver REST, Singal Detect, RSSI function indication (REST, RX SD, RSSI)

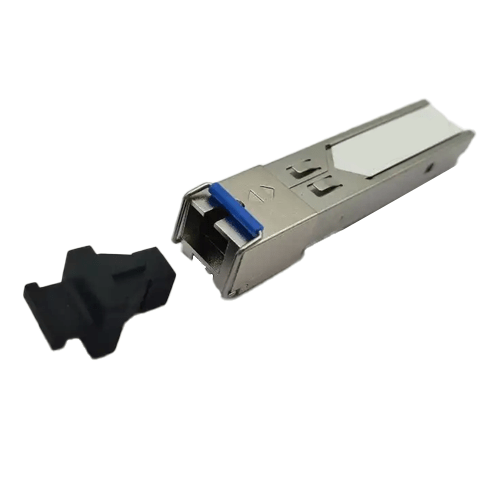

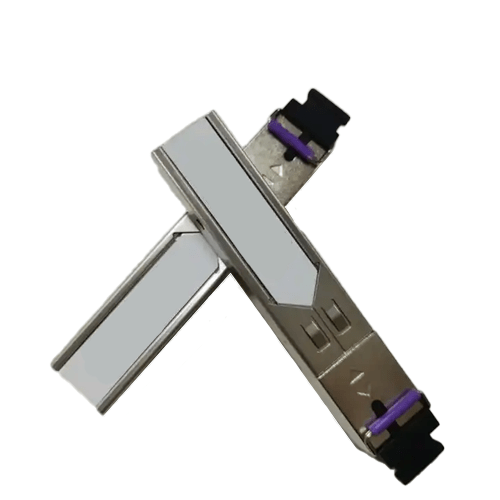

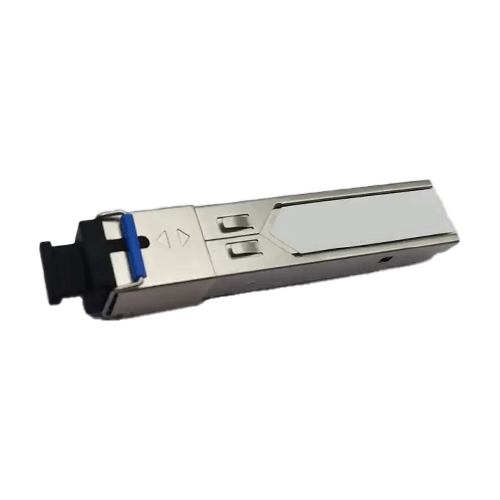

- SFP package with SC/ UPC receptacle optical interface
- Single 3.3 V power supply
- Operating case temperature: 32 ºF to 158 ºF (0 ºC to 70 ºC)
- RoHS6 compliance
Technical Specifications
| Bit Rate for Tx | 2.488 Gbps |
| Bit Rate for Rx | 1.244 Gbps |
| Tx Wavelength | 1490 nm |
| Rx Wavelength | 1310 nm |
| Sensitivity | -30 dBm |
| Extinction Ratio | 9 Db |
| Operating Temperature | 32 ºF to 158 ºF (0 ºC to 70 ºC) |
| Storage Temperature | -40 ºF to 185 ºF (-40 ºC to 85 ºC) |
