Overview

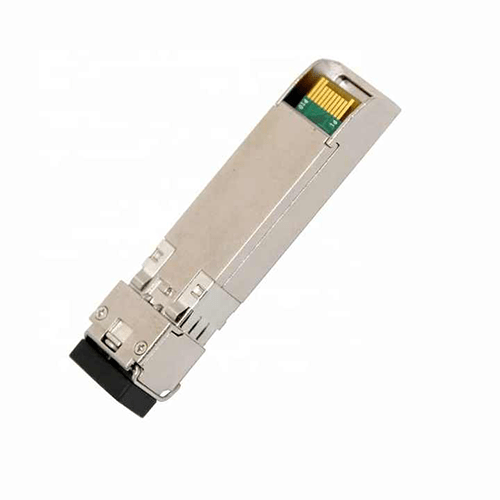

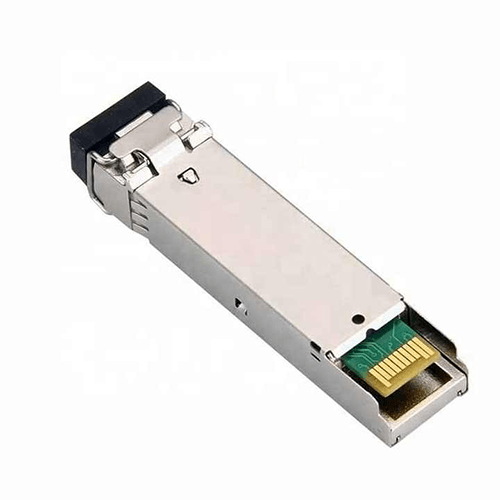

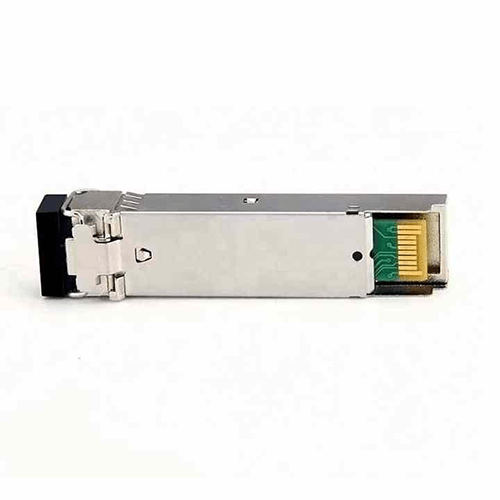

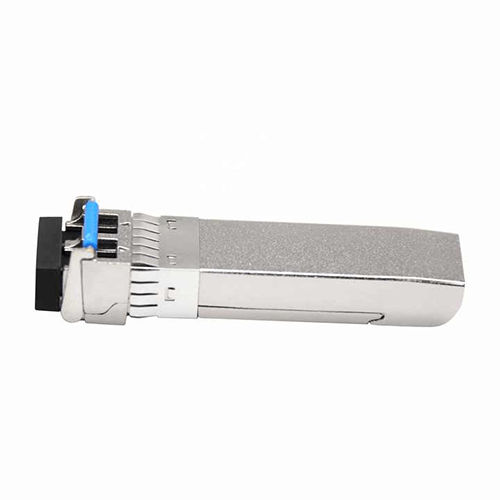

Emissions And Stack transceiver optical module incorporates a coded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating. Parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
- 10 GBASE-ER, and 2G / 4G / 8 G / 10 G Fiber Channel applications.
- Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
- Cooled EML transmitter and PIN receiver
- Link length up to 71 mi (80 km)
- Low Power Dissipation 1.5 W Maximum
- Diagnostic performance monitoring of module temperature, supply voltages
- Laser bias current, transmit optical power, receive optical power
- RoHS compliant and lead free
Technical Specifications
| Wavelength | 1528.38 nm to 1463.86 nm |
| Max Cable Distance | 49.71 mi (80 km) |
| Power supply | Single 3.3 V |
| Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 5.51 in x 3.94 in x 1.18 in (140 mm x 100 mm x 30 mm) |
| Weight | 0.17 lb (80 g) |
